Basic parameters
Model name

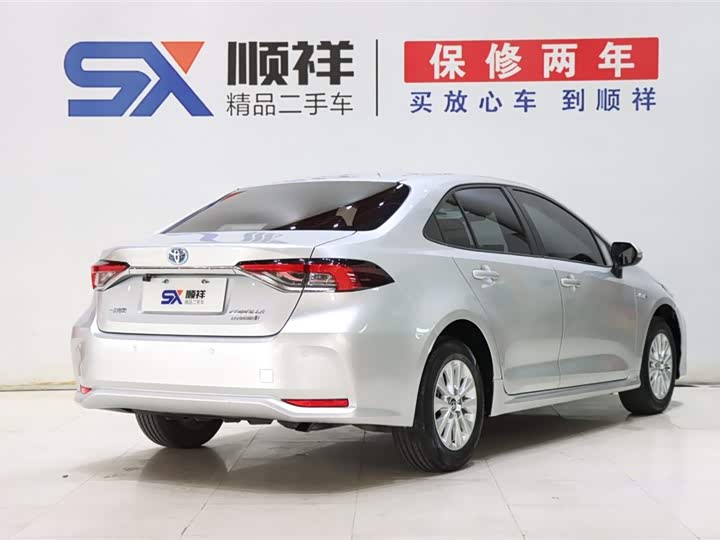

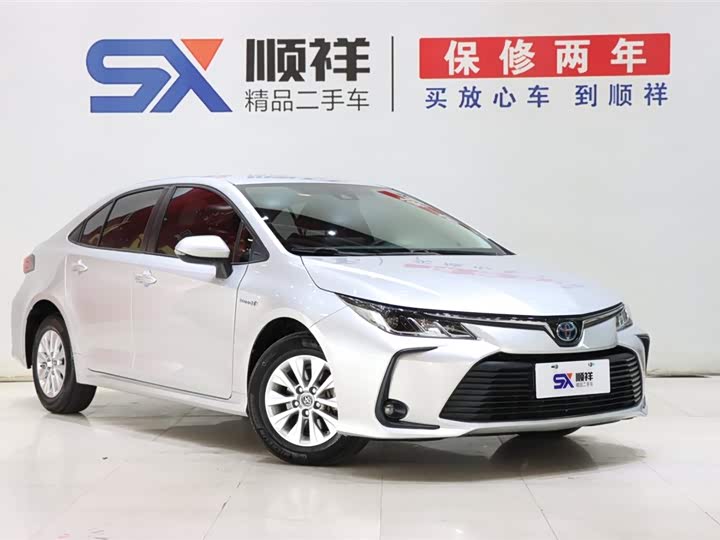

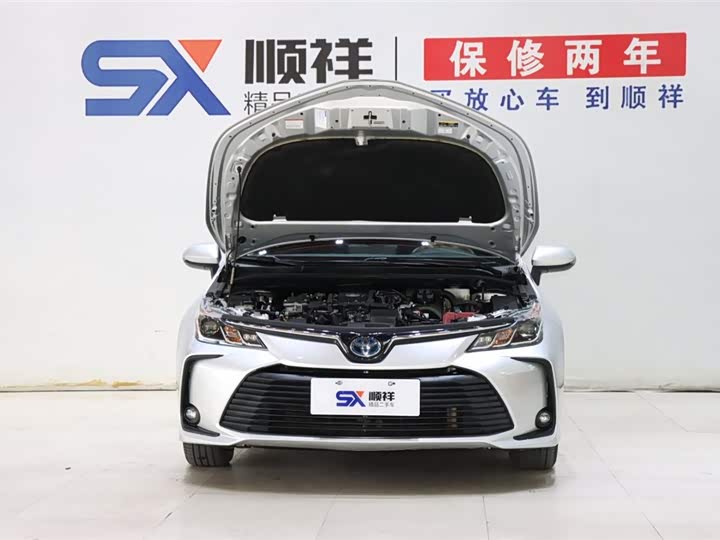

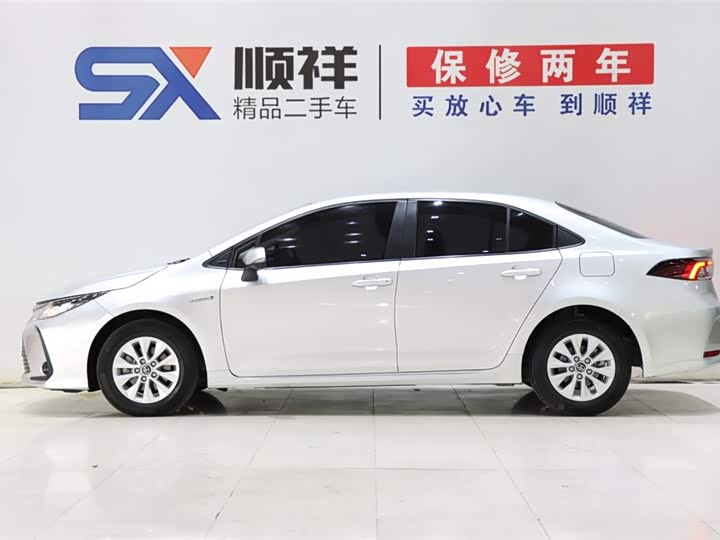

Corolla2021Dual Engine1.8LE-CVT Pioneer Edition
Manufacturer's guide price (yuan)
135,800
FAW Audi
FAW Toyota
Compact SUV
compact car
Gasoline
Gas-electric hybrid
National VI
Time to market
Maximum power (kW)
2020.07
Maximum power(kW)
90
Maximum torque (N·m)
-
engine
1.8L 98 horsepower L4
Motor(Ps)
72
gearbox
E-CVT continuously variable transmission
Length*width*height (mm)
4635*1780*1455
body structure
4-door, 5-seat sedan
Maximum speed (km/h)
160
Official 0-100km/h acceleration (s)
-
NEDC comprehensive fuel consumption (L/100km)
4
Vehicle warranty
Three years or 100,000 kilometers
First owner warranty policy
-
Body
length (mm)
4635
width (mm)
1780
height (mm)
1455
wheelbase (mm)
2700
front wheelbase (mm)
1527
rear wheelbase (mm)
1526
minimum ground clearance for full load Gap (mm)
146
approach angle (°)
12
departure angle (°)
11
minimum turning radius (m)
5.2
body structure
sedan
door opening method
swing door
number of doors (units)
4

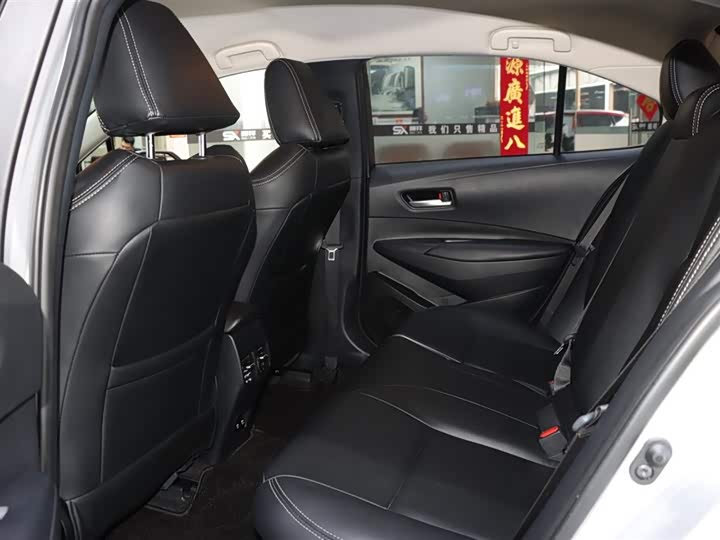

Number of seats (seats)
5
Fuel tank volume (L)
43

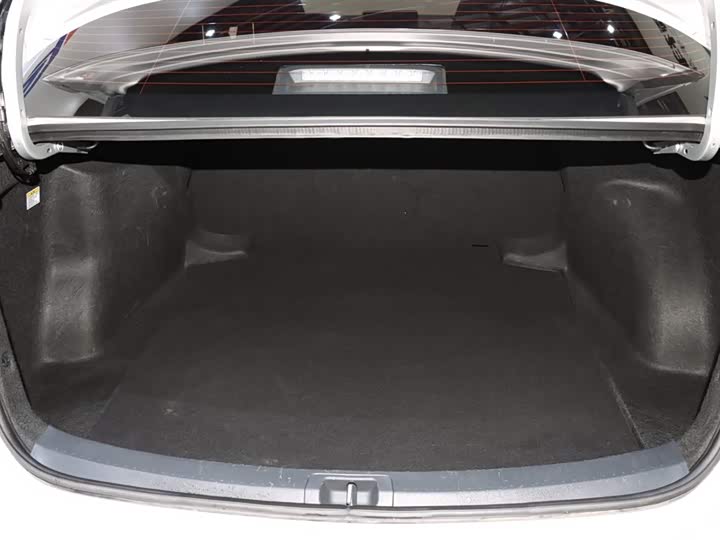

Trunk volume (L)
470
Curb weight (kg)
1410
Maximum full load mass (kg)
1845

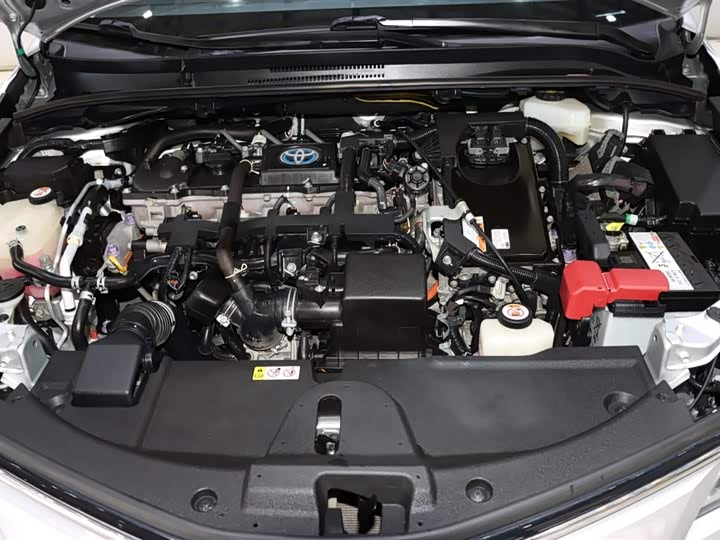

engine
Engine model
8ZR-FXE
Displacement (mL)
1798
Displacement(L)
1.8
Intake form
naturally aspirated
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Compression ratio
13
Valve train
DOHC
Bore diameter(mm)
80.5
Stroke(mm)
88.3
Maximum horsepower (Ps)
98
Maximum power(kW)
72
Maximum power speed (rpm)
5200
Maximum torque (N·m)
142
Maximum torque speed (rpm)
3600
Maximum net power (kW)
72
Engine specific technology
VVT-i
fuel form
Gas-electric hybrid
fuel grade
No. 92
Fuel supply method
Multi-point EFI
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
53
Total motor power (Ps)
-
Total torque of motor (N·m)
163
Maximum power of front electric motor (kW)
53
Maximum torque of front electric motor (N·m)
163
System comprehensive power (kW)
90
Number of drive motors
-
Motor layout
-
Battery type
Ni-MH battery
Battery energy (kWh)
-
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
eight years or 200,000 kilometers
Fast charging function
-
Fast charging time (hours)
-
Slow charging time (hours)
-
Fast charging capacity (%)
-

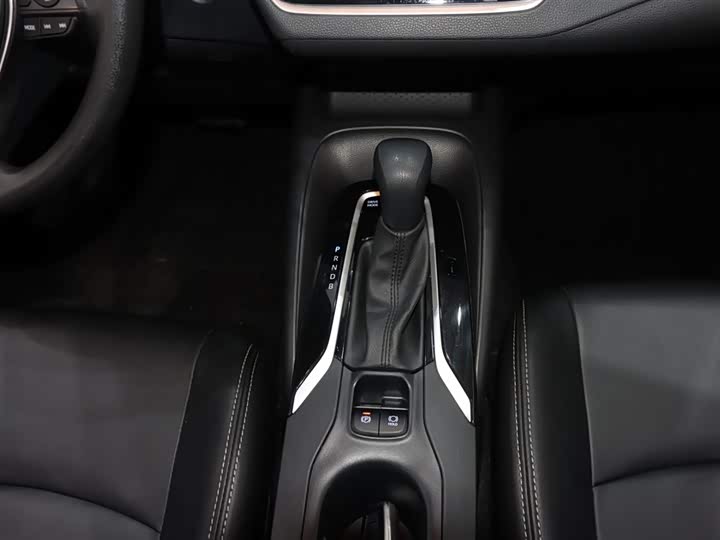

gearbox
Number of gears
Continuously variable speed
Gearbox type
Electronic continuously variable transmission (E-CVT)
abbreviation
E-CVT continuously variable transmission
chassis steering
Drive mode
Front wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
E-type multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
disc type
Parking brake type
Electronic parking

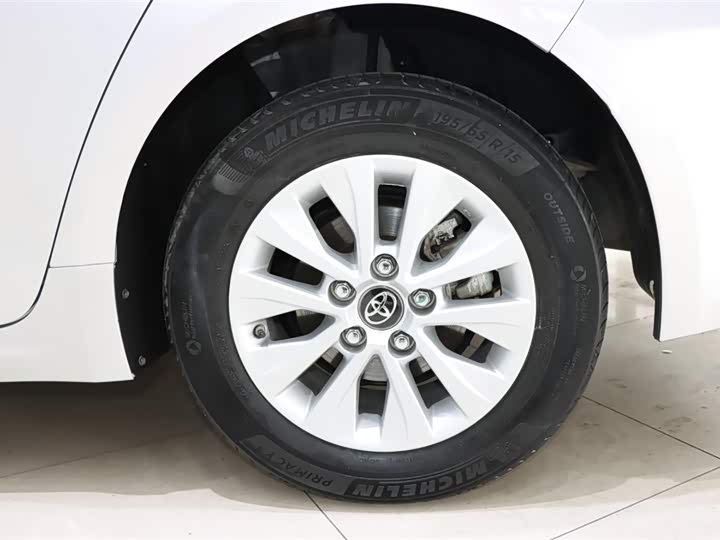

Front tire specifications
195/65 R15
Rear tire specifications
195/65 R15
Spare tire specifications
Not full size
