Basic parameters
Model name

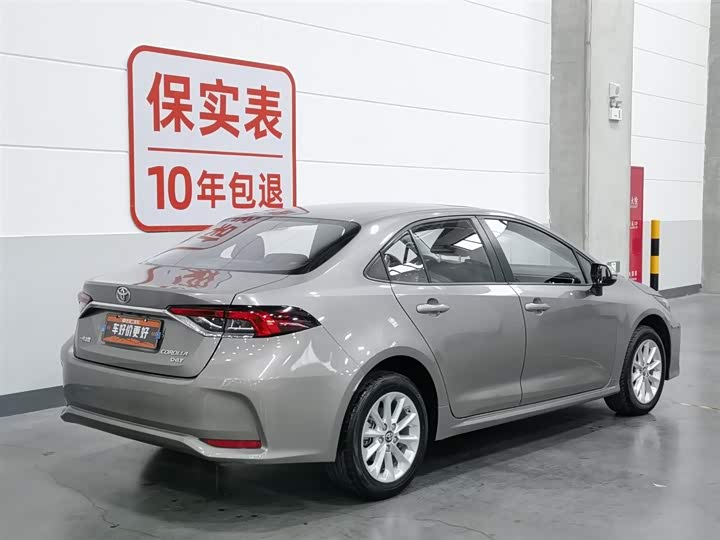

Corolla2021 model1.2TS-CVT Elite PLUS version
Manufacturer's guide price (yuan)
128,800
FAW Audi
FAW Toyota
Compact SUV
compact car
Gasoline
Environmental standards
National VI
Time to market
Maximum power (kW)
2021.01
Maximum power(kW)
85
Maximum torque (N·m)
185
engine
1.2T116 horsepowerL4
gearbox
CVT continuously variable transmission (simulated 10-speed)
Length*width*height (mm)
4635*1780*1455
body structure
4-door, 5-seat sedan
Maximum speed (km/h)
180
Official 0-100km/h acceleration (s)
-
NEDC comprehensive fuel consumption (L/100km)
5.6
Vehicle warranty
Three years or 100,000 kilometers
First owner warranty policy
-
Body
length (mm)
4635
width (mm)
1780
height (mm)
1455
wheelbase (mm)
2700
front wheelbase (mm)
1527
rear wheelbase (mm)
1526
minimum ground clearance for full load Gap (mm)
152
approach angle (°)
12
departure angle (°)
11
minimum turning radius (m)
5.2
body structure
sedan

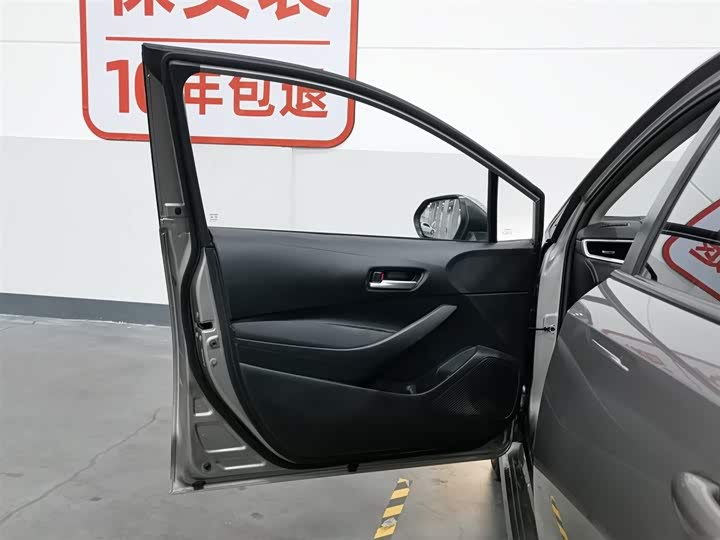

door opening method
swing door
number of doors (units)
4

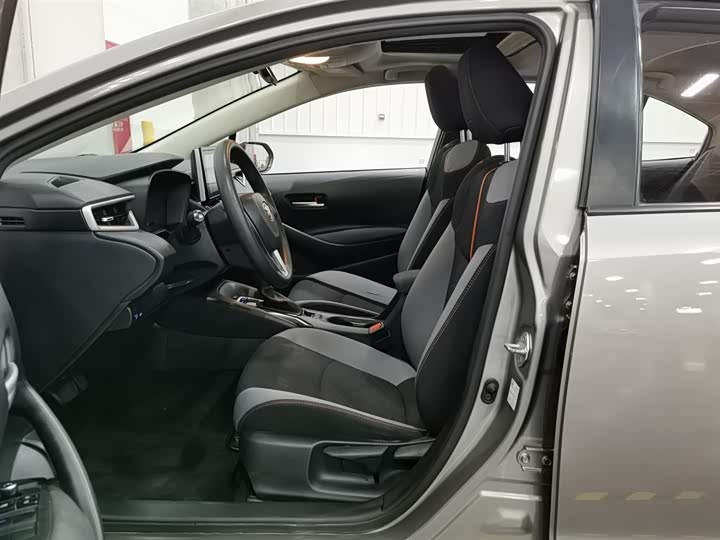

Number of seats (seats)
5
Fuel tank volume (L)
50

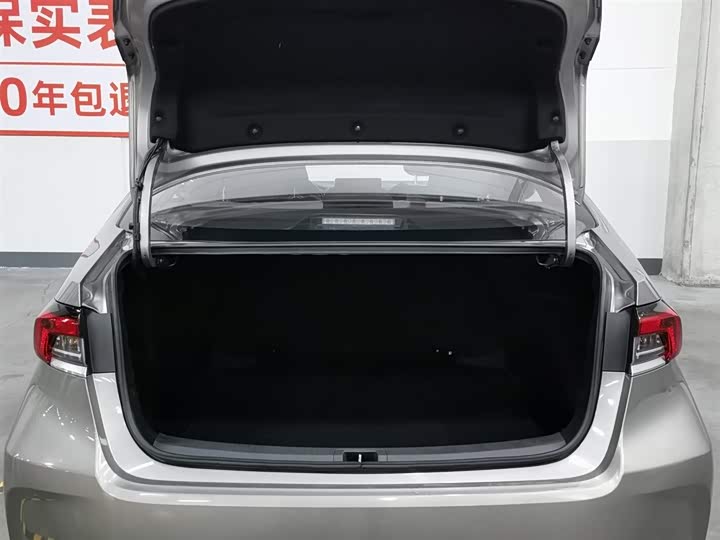

Trunk volume (L)
470
Curb weight (kg)
1340
Maximum full load mass (kg)
1770

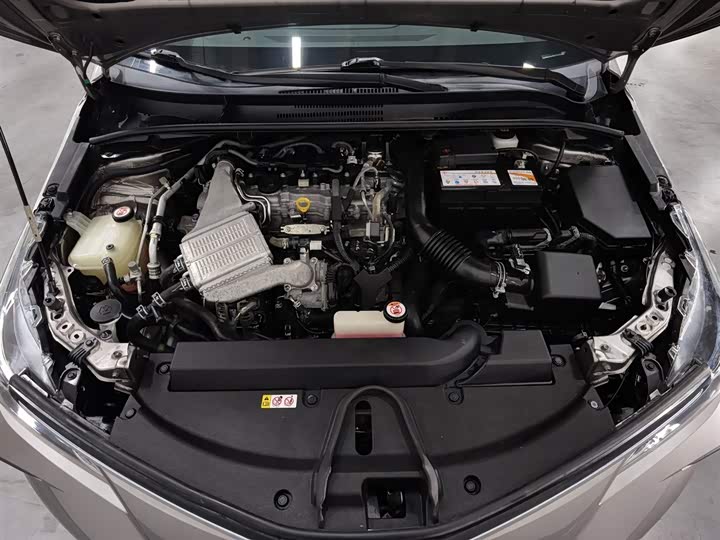

engine
Engine model
9NR/8NR
Displacement (mL)
1197
Displacement(L)
1.2
Intake form
turbocharging
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Compression ratio
10
Valve train
DOHC
Bore diameter(mm)
71.5
Stroke(mm)
74.5
Maximum horsepower (Ps)
116
Maximum power(kW)
85
Maximum power speed (rpm)
5200-5600
Maximum torque (N·m)
185
Maximum torque speed (rpm)
1500-4000
Maximum net power (kW)
85
Engine specific technology
VVT-iW
fuel form
Environmental standards
fuel grade
No. 92
Fuel supply method
direct injection
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market

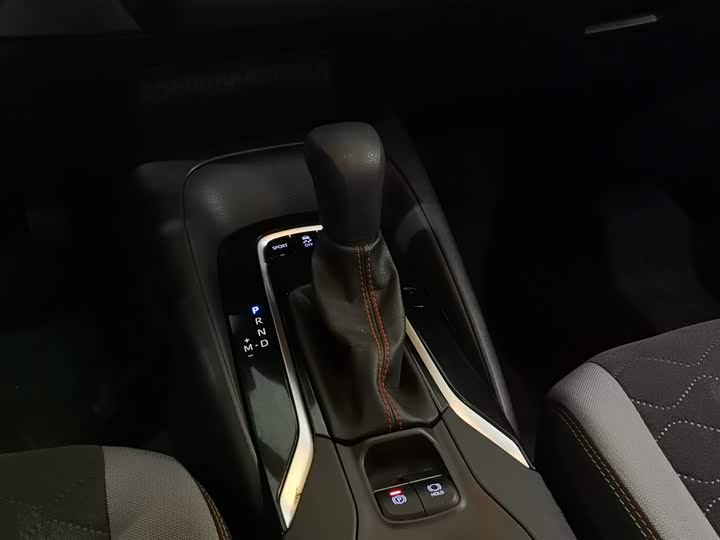

gearbox
Number of gears
10
Gearbox type
Continuously variable transmission (CVT)
abbreviation
CVT continuously variable transmission (simulated 10-speed)
chassis steering
Drive mode
Front wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
E-type multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
disc type
Parking brake type
Electronic parking

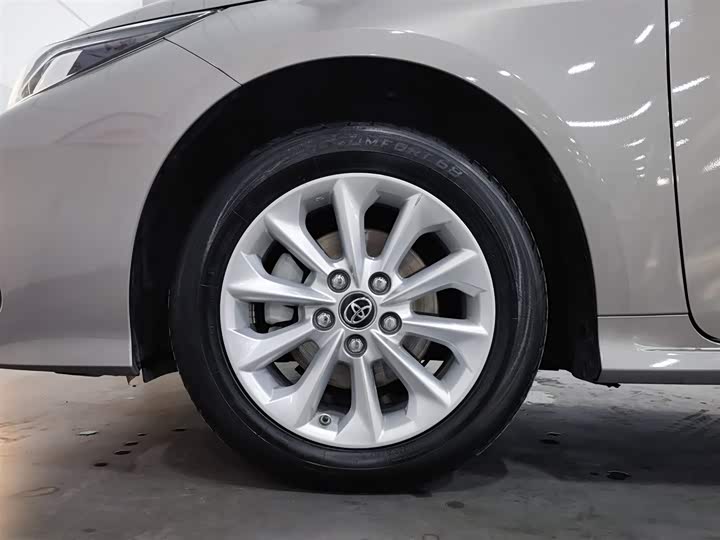

Front tire specifications
205/55 R16
Rear tire specifications
205/55 R16
Spare tire specifications
Not full size
