Basic parameters
Model name

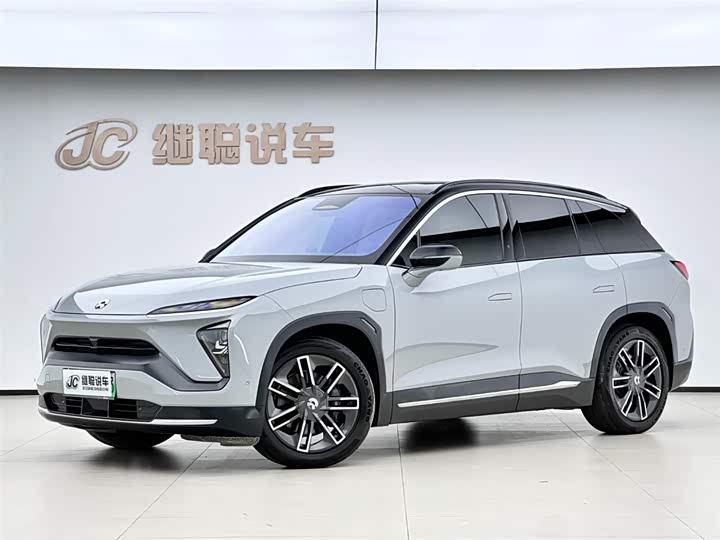

NIO EC62023 model75kWh
Manufacturer's guide price (yuan)
35.80万
FAW Audi
NIO
Compact SUV
Medium SUV
Gasoline
pure electric
Maximum power (kW)
2023.09
CLTC pure electric cruising range (km)
495
Fast charging time (hours)
0.5
Slow charging time (hours)
-
Fast charging percentage
80
Maximum power(kW)
360
Maximum torque (N·m)
700
Motor(Ps)
490
Length*width*height (mm)
4849*1995*1697
body structure
5-door, 5-seat SUV crossover
Maximum speed (km/h)
200
Official 0-100km/h acceleration (s)
4.4
Vehicle warranty
three years or 120,000 kilometers
First owner warranty policy
Six years or 150,000 kilometers
Body
length (mm)
4849
width (mm)
1995
height (mm)
1697
wheelbase (mm)
2915
front wheelbase (mm)
1711
rear wheelbase (mm)
1711
approach angle (°)
17
departure angle (°)
19
body structure
SUV crossover
door opening method
swing door
number of doors (units)
5
Number of seats (seats)
5
Trunk volume (L)
505-1402
Drag coefficient (Cd)
0.24
Curb weight (kg)
2292
Total mass of quasi-trailer (kg)
1260
Maximum full load mass (kg)
2826
electric motor
Motor type
前交流/异步 后永磁/同步
Total motor power (kW)
360
Total motor power (Ps)
-
Total torque of motor (N·m)
700
Maximum power of front electric motor (kW)
150
Maximum torque of front electric motor (N·m)
280
Maximum power of rear electric motor (kW)
210
Maximum torque of rear electric motor (N·m)
420
Number of drive motors
Dual motor
Motor layout
Front rear
Battery type
三元锂磷酸铁锂
Battery brand
Jiangsu Times
Battery cooling method
liquid cooling
battery replacement
support
CLTC pure electric cruising range (km)
495
Battery energy (kWh)
75
电池能量密度(Wh/kg)
142.1
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
首任车主十年不限公里(责任免除条款以官方为准)
Fast charging function
support
Fast charging power (kW)
180
Fast charging time (hours)
0.5
Slow charging time (hours)
-
Fast charging capacity (%)
80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
Dual motor four-wheel drive
four-wheel drive
Electric four-wheel drive
Center differential structure
-
Front suspension type
Five-link independent suspension
rear suspension type
Five-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
ventilated disc
Parking brake type
Electronic parking
Front tire specifications
255/50 R20
Rear tire specifications
255/50 R20
Spare tire specifications
Tire repair tools
