Basic parameters
Model name

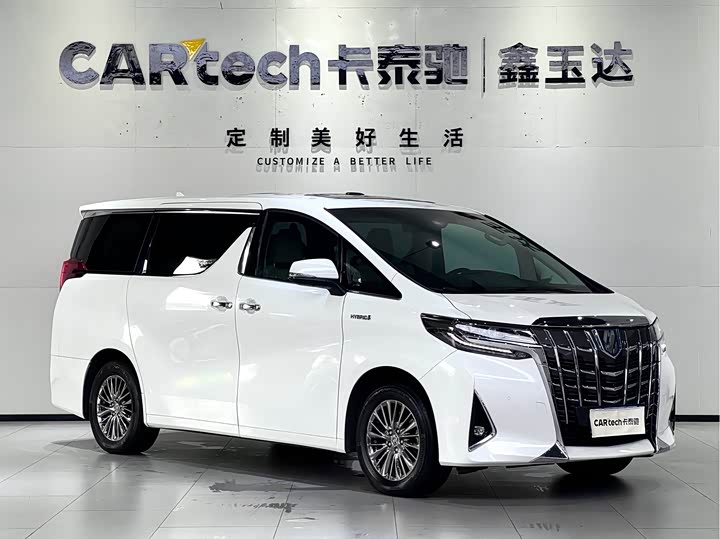

Alphard 2021 Hybrid 2.5L Luxury
FAW Audi
Toyota (imported)
Compact SUV
Medium and large MPV
Gasoline
Gas-electric hybrid
National VI
Time to market
Maximum power (kW)
2021.06
Maximum power(kW)
120
Maximum torque (N┬╖m)
-
Engine
2.5L117 horsepowerL4
Motor(Ps)
211
gearbox
E-CVT continuously variable transmission
Length*width*height (mm)
4975*1850*1945
body structure
5-door, 7-seater MPV
Maximum speed (km/h)
152
Official 0-100km/h acceleration (s)
-
NEDC comprehensive fuel consumption (L/100km)
7.1
Vehicle warranty
Three years or 100,000 kilometers
First owner warranty policy
-
Body
length (mm)
4975
width (mm)
1850
height (mm)
1945
wheelbase (mm)
3000
front wheelbase (mm)
1600
rear wheelbase (mm)
1605
minimum ground clearance for full load Gap (mm)
170
minimum turning radius (m)
5.6
body structure
MPV
door opening method
Swing door sliding door
number of doors (units)
5
Number of seats (seats)
7
Fuel tank volume (L)
58
Trunk volume (L)
-
Curb weight (kg)
2270
Maximum full load mass (kg)
2815

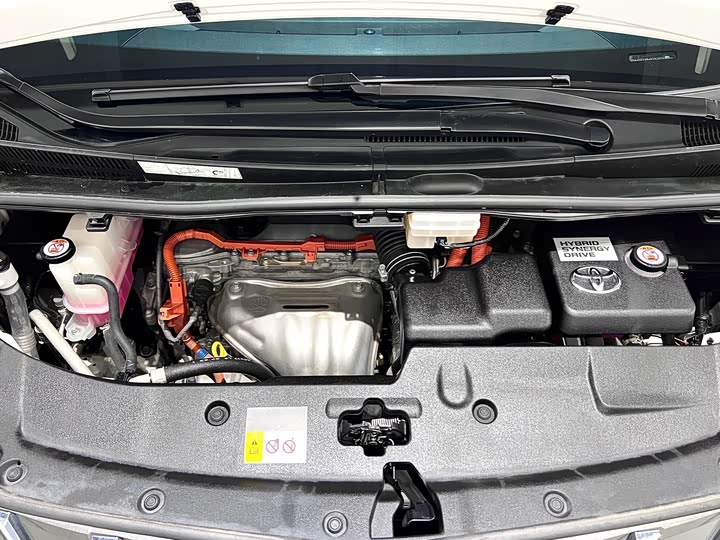

Engine
Engine model
2AR-FXE
Displacement (mL)
2494
Displacement(L)
2.5
Intake form
naturally aspirated
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Compression ratio
12.5
Valve train
DOHC
Maximum horsepower (Ps)
117
Maximum power(kW)
86
Maximum power speed (rpm)
4700
Maximum torque (N┬╖m)
198
Maximum torque speed (rpm)
2800-4000
Maximum net power (kW)
86
Engine specific technology
VVT-i
fuel form
Gas-electric hybrid
fuel grade
No. 92
Fuel supply method
mixed jet
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
155
Total motor power (Ps)
-
Total torque of motor (N┬╖m)
409
Maximum power of front electric motor (kW)
105
Maximum torque of front electric motor (N┬╖m)
270
Maximum power of rear electric motor (kW)
50
Maximum torque of rear electric motor (N┬╖m)
139
System comprehensive power (kW)
120
Number of drive motors
Dual motor
Motor layout
Front rear
Battery type
-
Battery energy (kWh)
-
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
Eight years or 120,000 kilometers
Fast charging function
-
Fast charging time (hours)
-
Slow charging time (hours)
-
Fast charging capacity (%)
-
gearbox
Number of gears
Continuously variable speed
Gearbox type
Electronic continuously variable transmission (E-CVT)
abbreviation
E-CVT continuously variable transmission
chassis steering
Drive mode
Front four-wheel drive
four-wheel drive
Electric four-wheel drive
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Double wishbone independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
ventilated disc
Parking brake type
Electronic parking

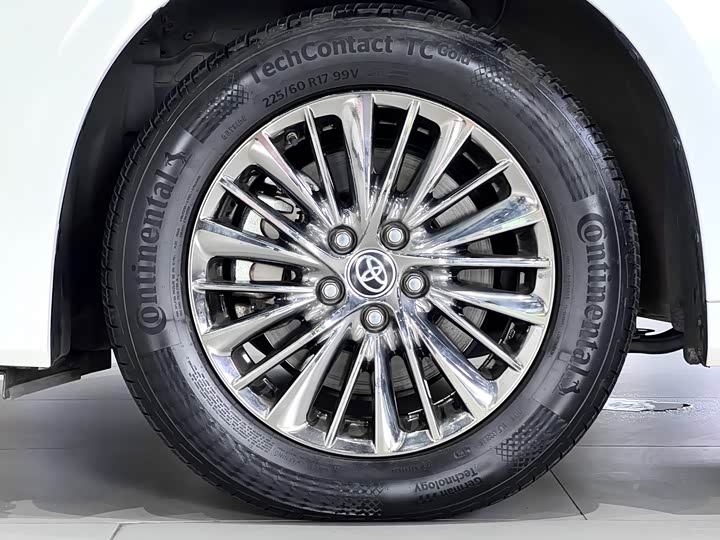

Front tire specifications
225/60 R17
Rear tire specifications
225/60 R17
Spare tire specifications
Not full size
