Basic parameters
Model name

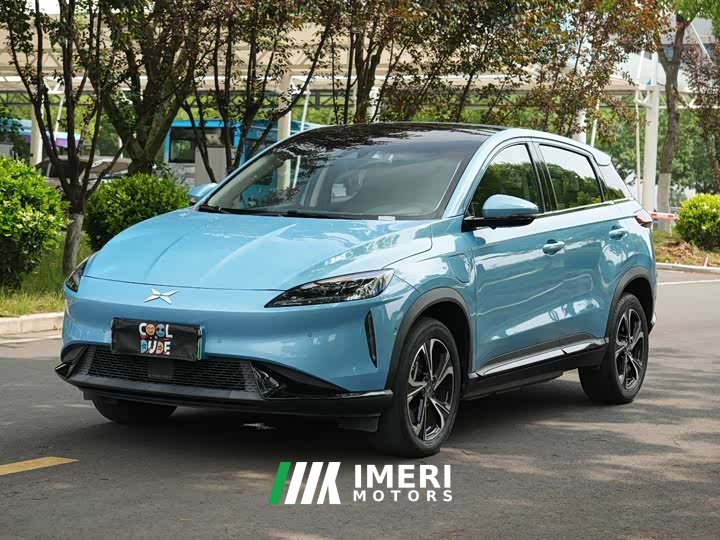

Xpeng G3 2020 520i Smart Edition
FAW Audi
Xpeng Motors
Compact SUV
Energy type
Gasoline
pure electric
Maximum power (kW)
2020.04
NEDC pure electric cruising range (km)
520
Fast charging time (hours)
0.5
Slow charging time (hours)
5.5
Fast charging percentage
80
Maximum power(kW)
145
Maximum torque (N·m)
300
Motor(Ps)
197
Length*width*height (mm)
4450*1820*1610
body structure
5-door, 5-seater SUV
Maximum speed (km/h)
170
Official 0-100km/h acceleration (s)
8.6
Vehicle warranty
Four years or 100,000 kilometers
Body
length (mm)
4450
width (mm)
1820
height (mm)
1610
wheelbase (mm)
2625
front wheelbase (mm)
1546
rear wheelbase (mm)
1551
minimum ground clearance for full load Gap (mm)
130
body structure
SUV
number of doors (units)
5
Number of seats (seats)
5
Trunk volume (L)
380-760
Curb weight (kg)
1637
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
145
Total motor power (Ps)
-
Total torque of motor (N·m)
300
Maximum power of front electric motor (kW)
145
Maximum torque of front electric motor (N·m)
300
Number of drive motors
single motor
Motor layout
prefix
Battery type
Ternary lithium battery
NEDC pure electric cruising range (km)
520
Battery energy (kWh)
66.5
Electricity consumption per 100 kilometers (kWh/100km)
14.1
Battery pack warranty
Eight years or 150,000 kilometers
Fast charging function
support
Fast charging time (hours)
0.5
Slow charging time (hours)
5.5
Fast charging capacity (%)
80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
Front wheel drive
Front suspension type
MacPherson independent suspension
rear suspension type
torsion beam non-independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
disc type
Parking brake type
Electronic parking
Front tire specifications
215/55 R17
Rear tire specifications
215/55 R17
Spare tire specifications
None
