Basic parameters
Model name

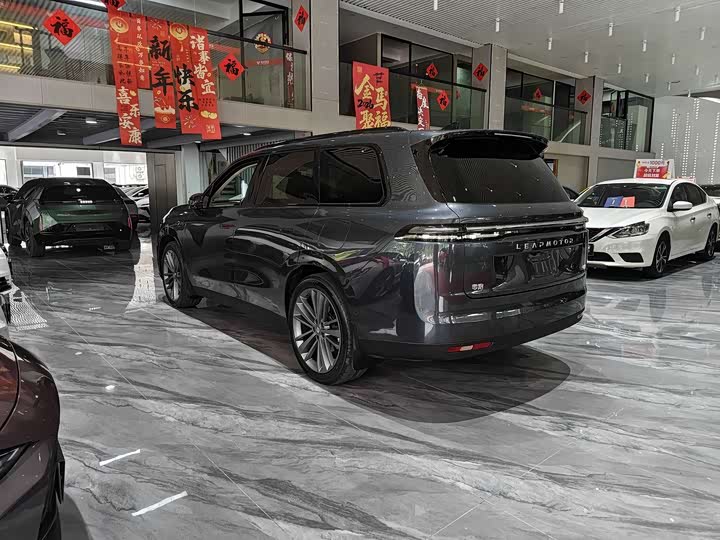

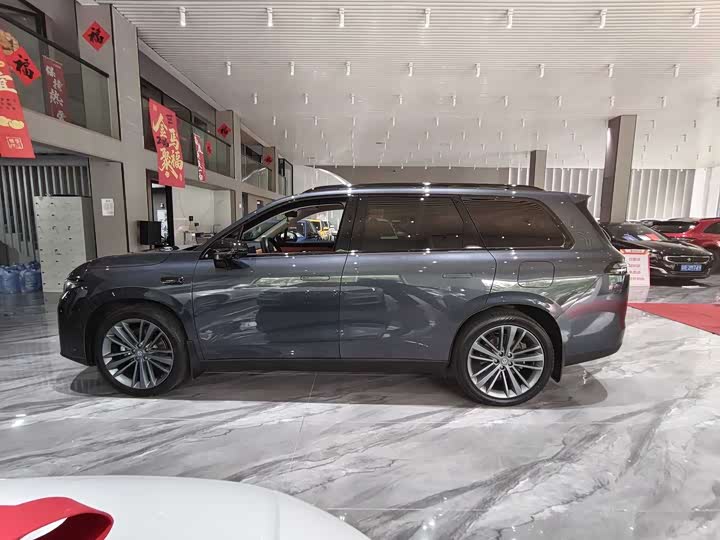

Leapmoon C16 2024 Extended Range 200 Exclusive Edition
FAW Audi
Leap car
Compact SUV
Medium and large SUV
Gasoline
Extended range
National VI
Time to market
Maximum power (kW)
2024.06
WLTC pure electric cruising range (km)
134
CLTC pure electric cruising range (km)
200
Fast charging time (hours)
0.5
Slow charging time (hours)
3
Fast charging percentage
30-80
Maximum power(kW)
170
Maximum torque (N·m)
-
Engine
1.5L 95 HP L4
Motor(Ps)
231
gearbox
Electric vehicle single speed gearbox
Length*width*height (mm)
4915*1905*1770
body structure
5-door, 6-seater SUV
Maximum speed (km/h)
170
Official 0-100km/h acceleration (s)
8.46
WLTC comprehensive fuel consumption (L/100km)
0.88
Electric energy equivalent fuel consumption (L/100km)
2.09
Vehicle warranty
Four years or 120,000 kilometers
First owner warranty policy
Lifetime warranty/non-operation (the liability exemption clause shall be subject to the official)
Body
length (mm)
4915
width (mm)
1905
height (mm)
1770
wheelbase (mm)
2825
front wheelbase (mm)
1625
rear wheelbase (mm)
1625
Minimum ground clearance without load (mm)
205
approach angle (°)
19
departure angle (°)
21
body structure
SUV
door opening method
swing door
number of doors (units)
5

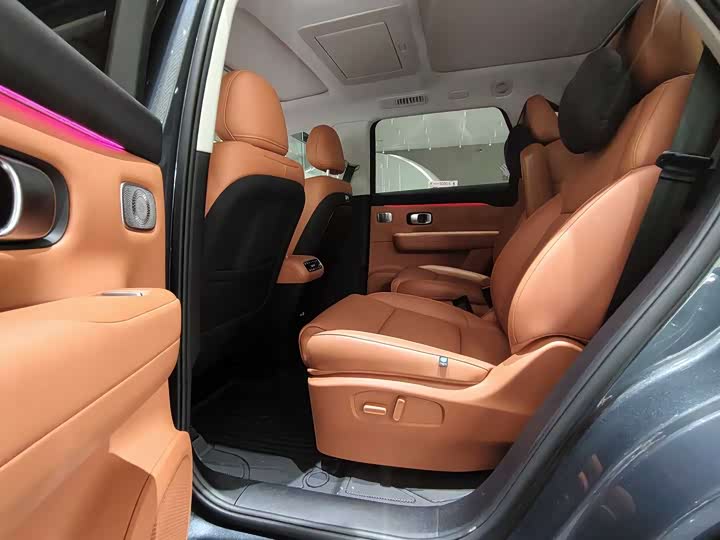

Number of seats (seats)
6
Fuel tank volume (L)
50
Trunk volume (L)
209-1022
Curb weight (kg)
2065
Maximum full load mass (kg)
2515
Engine
Engine model
H15R
Displacement (mL)
1499
Displacement(L)
1.5
Intake form
naturally aspirated
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Valve train
DOHC
Maximum horsepower (Ps)
95
Maximum power(kW)
70
Maximum power speed (rpm)
-
Maximum torque (N·m)
-
Maximum torque speed (rpm)
-
Maximum net power (kW)
68
fuel form
Extended range
fuel grade
No. 92
Fuel supply method
Multi-point EFI
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
170
Total motor power (Ps)
-
Total torque of motor (N·m)
320
Maximum power of rear electric motor (kW)
170
Maximum torque of rear electric motor (N·m)
320
Number of drive motors
single motor
Motor layout
rear
Battery type
Lithium iron phosphate battery
Battery brand
China New Airlines
Battery cooling method
liquid cooling
WLTC pure electric cruising range (km)
134
CLTC pure electric cruising range (km)
200
WLTC comprehensive range (km)
910
Battery energy (kWh)
28.4
Electricity consumption per 100 kilometers (kWh/100km)
18.5
Battery pack warranty
Eight years or 150,000 kilometers
Fast charging function
support
Fast charging time (hours)
0.5
Slow charging time (hours)
3
Fast charging capacity (%)
30-80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
rear wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Five-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
ventilated disc
Parking brake type
Electronic parking

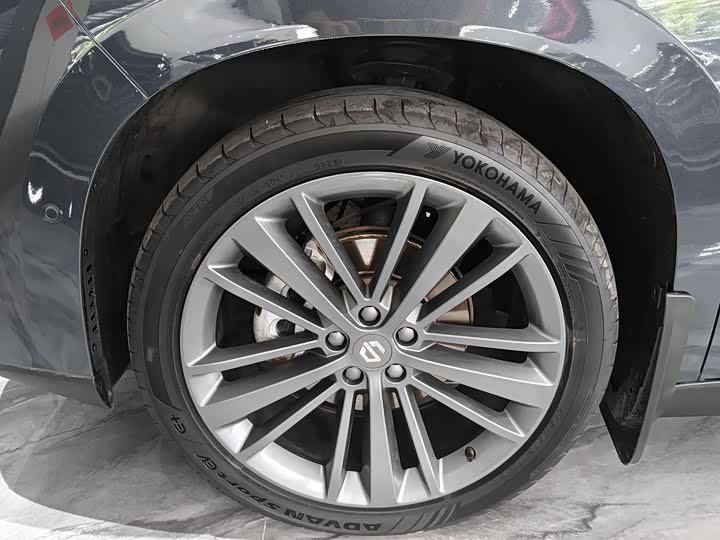

Front tire specifications
235/55 R20
Rear tire specifications
255/50 R20
Spare tire specifications
-
