Basic parameters
Model name

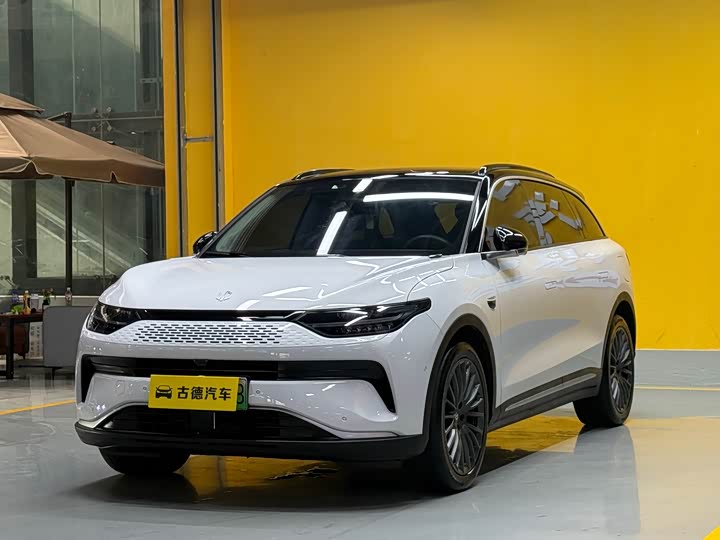

Leapmotor C11 2023 Extended Range 285 Smart Edition
FAW Audi
Leap car
Compact SUV
Medium SUV
Gasoline
Extended range
National VI
Time to market
Maximum power (kW)
2023.03
WLTC pure electric cruising range (km)
170
CLTC pure electric cruising range (km)
285
Fast charging time (hours)
0.5
Slow charging time (hours)
3.8
Fast charging percentage
30-80
Maximum power(kW)
200
Maximum torque (N·m)
-
Engine
1.2T 131 hp L3
Motor(Ps)
272
gearbox
Electric vehicle single speed gearbox
Length*width*height (mm)
4780*1905*1675
body structure
5-door, 5-seater SUV
Maximum speed (km/h)
170
Official 0-100km/h acceleration (s)
8.5
WLTC comprehensive fuel consumption (L/100km)
0.73
Minimum state of charge fuel consumption (L/100km)
6.80
Vehicle warranty
Four years or 120,000 kilometers
First owner warranty policy
-
Body
length (mm)
4780
width (mm)
1905
height (mm)
1675
wheelbase (mm)
2930
front wheelbase (mm)
1605
rear wheelbase (mm)
1595
Minimum ground clearance without load (mm)
176
approach angle (°)
20
departure angle (°)
24
body structure
SUV
door opening method
swing door
number of doors (units)
5
Number of seats (seats)
5
Fuel tank volume (L)
47
Trunk volume (L)
375-840
Curb weight (kg)
2065
Maximum full load mass (kg)
2440
Engine
Engine model
DAM12TD
Displacement (mL)
1199
Displacement(L)
1.2
Intake form
turbocharging
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
3
Number of valves per cylinder (number)
4
Valve train
DOHC
Maximum horsepower (Ps)
131
Maximum power(kW)
96
Maximum power speed (rpm)
5500
Maximum torque (N·m)
-
Maximum torque speed (rpm)
-
Maximum net power (kW)
96
fuel form
Extended range
fuel grade
No. 92
Fuel supply method
Multi-point EFI
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
200
Total motor power (Ps)
-
Total torque of motor (N·m)
360
Maximum power of rear electric motor (kW)
200
Maximum torque of rear electric motor (N·m)
360
Number of drive motors
single motor
Motor layout
rear
Battery type
Ternary lithium battery
Battery brand
CALB
Battery cooling method
liquid cooling
Exchange battery
Not supported
WLTC pure electric cruising range (km)
170
CLTC pure electric cruising range (km)
285
WLTC comprehensive range (km)
858
Battery energy (kWh)
43.74
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
Eight years or 150,000 kilometers
Fast charging function
support
Fast charging time (hours)
0.5
Slow charging time (hours)
3.8
Fast charging capacity (%)
30-80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
rear wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
Double wishbone independent suspension
rear suspension type
Five-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
ventilated disc
Parking brake type
Electronic parking
Front tire specifications
235/60 R18
Rear tire specifications
235/60 R18
Spare tire specifications
None
