Basic parameters
Model name

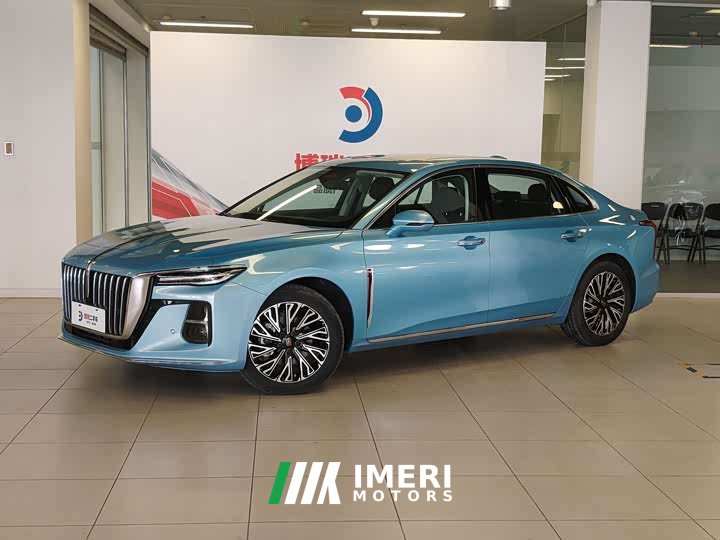

Hongqi H5 2024 1.5T HEV Zhilian Qichang Edition
FAW Audi
FAW Hongqi
Compact SUV
mid-size car
Gasoline
Gas-electric hybrid
National VI
Time to market
Maximum power (kW)
2023.08
Maximum power(kW)
-
Maximum torque (N·m)
-
Engine
1.5T169 horsepowerL4
Motor(Ps)
190
gearbox
1st gear DHT
Length*width*height (mm)
4988*1875*1470
body structure
4-door, 5-seat sedan
Maximum speed (km/h)
180
Official 0-100km/h acceleration (s)
8
WLTC comprehensive fuel consumption (L/100km)
5.1
Vehicle warranty
Four years or 100,000 kilometers
First owner warranty policy
-
Body
length (mm)
4988
width (mm)
1875
height (mm)
1470
wheelbase (mm)
2920
front wheelbase (mm)
1615
rear wheelbase (mm)
1607
approach angle (°)
13
departure angle (°)
16
body structure
sedan
door opening method
swing door
number of doors (units)
4
Number of seats (seats)
5
Fuel tank volume (L)
48
Trunk volume (L)
-
Curb weight (kg)
1745
Maximum full load mass (kg)
2195
Engine
Engine model
CA4GB15TD-34
Displacement (mL)
1498
Displacement(L)
1.5
Intake form
turbocharging
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Valve train
-
Maximum horsepower (Ps)
169
Maximum power(kW)
124
Maximum power speed (rpm)
-
Maximum torque (N·m)
258
Maximum torque speed (rpm)
-
Maximum net power (kW)
118
fuel form
Gas-electric hybrid
fuel grade
No. 95
Fuel supply method
direct injection
Cylinder head material
Aluminum alloy
Cylinder material
cast iron
National VI
Time to market
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
140
Total motor power (Ps)
-
Total torque of motor (N·m)
280
Maximum power of front electric motor (kW)
140
Maximum torque of front electric motor (N·m)
280
Number of drive motors
single motor
Motor layout
prefix
Battery type
Ternary lithium battery
Battery energy (kWh)
-
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
-
Fast charging function
-
Fast charging time (hours)
-
Slow charging time (hours)
-
Fast charging capacity (%)
-
gearbox
Number of gears
1
Gearbox type
Dedicated Hybrid Transmission (DHT)
abbreviation
1st gear DHT
chassis steering
Drive mode
Front wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
disc type
Parking brake type
Electronic parking
Front tire specifications
225/50 R18
Rear tire specifications
225/50 R18
Spare tire specifications
None
