Basic parameters
Model name
Dark Blue S05 2024 510Max pure electric version
FAW Audi
dark blue car
Compact SUV
Energy type
Gasoline
pure electric
Maximum power (kW)
2024.10
CLTC pure electric cruising range (km)
510
Fast charging time (hours)
0.25
Slow charging time (hours)
-
Fast charging percentage
30-80
Maximum power(kW)
-
Maximum torque (N·m)
-
Motor(Ps)
238
Length*width*height (mm)
4620*1900*1600
body structure
5-door, 5-seater SUV
Maximum speed (km/h)
180
Official 0-100km/h acceleration (s)
7.3
Electric energy equivalent fuel consumption (L/100km)
1.45
Vehicle warranty
Three years or 120,000 kilometers
First owner warranty policy
-
Body
length (mm)
4620
width (mm)
1900
height (mm)
1600
wheelbase (mm)
2880
front wheelbase (mm)
1625
rear wheelbase (mm)
1640
approach angle (°)
18
departure angle (°)
24
body structure
SUV
door opening method
swing door
number of doors (units)
5
Number of seats (seats)
5
Front trunk volume (L)
159

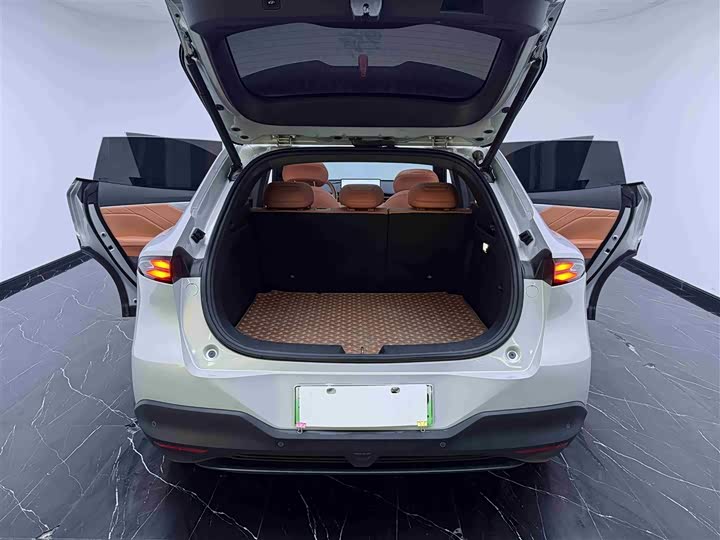

Trunk volume (L)
492
Curb weight (kg)
1770
Maximum full load mass (kg)
2150
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
175
Total motor power (Ps)
-
Total torque of motor (N·m)
320
Maximum power of rear electric motor (kW)
175
Maximum torque of rear electric motor (N·m)
320
Number of drive motors
single motor
Motor layout
rear
Battery type
Lithium iron phosphate battery
Battery brand
Ningde era
Battery cooling method
liquid cooling
CLTC pure electric cruising range (km)
510
Battery energy (kWh)
56.12
Electricity consumption per 100 kilometers (kWh/100km)
12.5
Battery pack warranty
-
Fast charging function
support
Fast charging time (hours)
0.25
Slow charging time (hours)
-
Fast charging capacity (%)
30-80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
rear wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Five-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
disc type
Parking brake type
Electronic parking
Front tire specifications
225/60 R18
Rear tire specifications
225/60 R18
Spare tire specifications
Tire repair tools
