Basic parameters
Model name

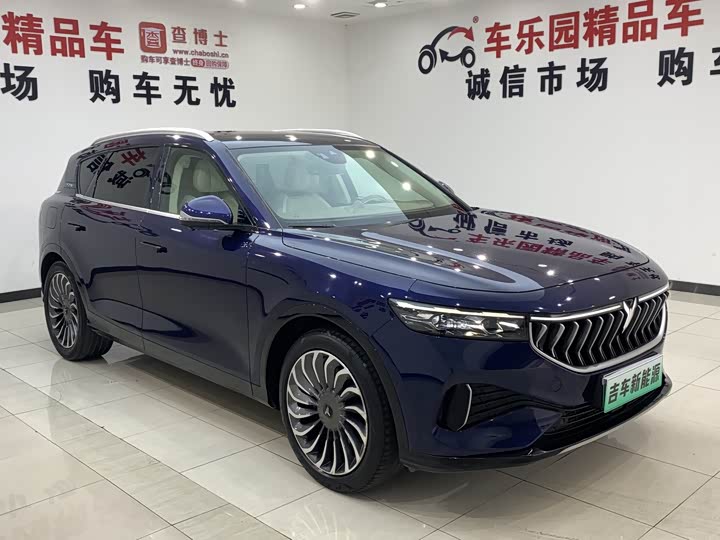

Lantu FREE 2021 four-wheel drive standard extended range exclusive luxury package
FAW Audi
Lantu Automobile
Compact SUV
Medium and large SUV
Gasoline
Extended range
National VI
Time to market
Maximum power (kW)
2021.06
NEDC pure electric cruising range (km)
140
WLTC pure electric cruising range (km)
123
Fast charging time (hours)
0.75
Slow charging time (hours)
3.75
Fast charging percentage
80
Maximum power(kW)
510
Maximum torque (N·m)
-
Engine
Extended range 109 horsepower
Motor(Ps)
694
gearbox
Electric vehicle single speed gearbox
Length*width*height (mm)
4905*1950*1645
body structure
5-door, 5-seater SUV
Maximum speed (km/h)
200
Official 0-100km/h acceleration (s)
4.5
WLTC comprehensive fuel consumption (L/100km)
1.3
Minimum state of charge fuel consumption (L/100km)
8.3
Electric energy equivalent fuel consumption (L/100km)
2.3
Vehicle warranty
-
First owner warranty policy
-
Body
length (mm)
4905
width (mm)
1950
height (mm)
1645
wheelbase (mm)
2960
front wheelbase (mm)
1654
rear wheelbase (mm)
1647
minimum ground clearance for full load Gap (mm)
163
approach angle (°)
18
departure angle (°)
25
body structure
SUV
door opening method
swing door
number of doors (units)
5
Number of seats (seats)
5
Fuel tank volume (L)
56
Trunk volume (L)
560-1320
Drag coefficient (Cd)
0.3
Curb weight (kg)
2290
Maximum full load mass (kg)
2665
Engine
Engine model
SFG15TR
Displacement (mL)
1498
Displacement(L)
1.5
Intake form
turbocharging
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Valve train
DOHC
Maximum horsepower (Ps)
109
Maximum power(kW)
80
Maximum power speed (rpm)
-
Maximum torque (N·m)
-
Maximum torque speed (rpm)
-
Maximum net power (kW)
80
fuel form
Extended range
fuel grade
No. 92
Fuel supply method
-
Cylinder head material
Aluminum alloy
Cylinder material
cast iron
National VI
Time to market
electric motor
Motor type
communication/asynchronous
Total motor power (kW)
510
Total motor power (Ps)
694
Total torque of motor (N·m)
1040
Maximum power of front electric motor (kW)
255
Maximum torque of front electric motor (N·m)
520
Maximum power of rear electric motor (kW)
255
Maximum torque of rear electric motor (N·m)
520
System comprehensive power (kW)
510
System comprehensive power (Ps)
694
System comprehensive torque (N·m)
1040
Number of drive motors
Dual motor
Motor layout
Front rear
Battery type
Ternary lithium battery
NEDC pure electric cruising range (km)
140
WLTC pure electric cruising range (km)
123
NEDC Combined Range (km)
860
Battery energy (kWh)
33
Electricity consumption per 100 kilometers (kWh/100km)
20.2
Battery pack warranty
Eight years or 120,000 kilometers
Fast charging function
support
Fast charging time (hours)
0.75
Slow charging time (hours)
3.75
Fast charging capacity (%)
80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
Dual motor four-wheel drive
four-wheel drive
Electric four-wheel drive
Center differential structure
-
Front suspension type
Double wishbone independent suspension
rear suspension type
Multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
ventilated disc
Parking brake type
Electronic parking
Front tire specifications
255/45 R20
Rear tire specifications
255/45 R20
Spare tire specifications
None
