Basic parameters
Model name

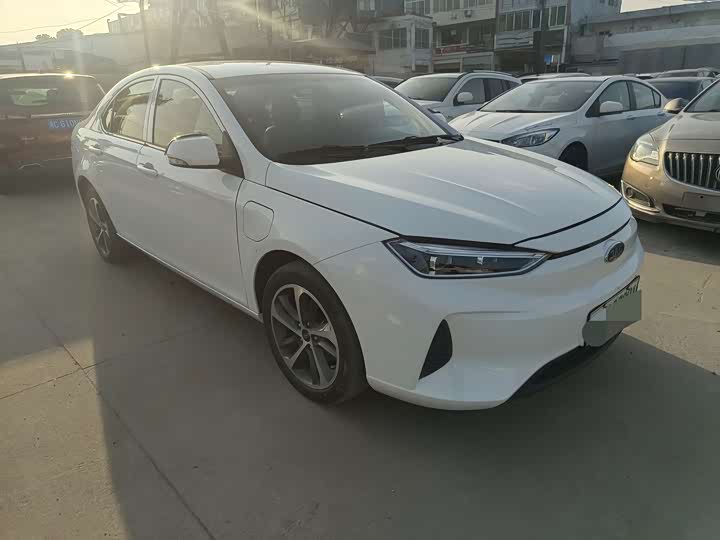

JAC iEVA50 2021 battery swapping pleasure version
FAW Audi
JAC
Compact SUV
compact car
Gasoline
pure electric
Maximum power (kW)
2021.06
NEDC pure electric cruising range (km)
350
Fast charging time (hours)
0.6
Slow charging time (hours)
7
Fast charging percentage
80
Maximum power(kW)
92
Maximum torque (N·m)
270
Motor(Ps)
125
Length*width*height (mm)
4640*1765*1490
body structure
4-door, 5-seat sedan
Maximum speed (km/h)
130
Official 0-100km/h acceleration (s)
13
Official 0-50km/h acceleration (s)
5
Electric energy equivalent fuel consumption (L/100km)
1.6
Vehicle warranty
Five years or 100,000 kilometers
First owner warranty policy
-
Body
length (mm)
4640
width (mm)
1765
height (mm)
1490
wheelbase (mm)
2710
front wheelbase (mm)
1505
rear wheelbase (mm)
1495
minimum ground clearance for full load Gap (mm)
130
approach angle (°)
15
departure angle (°)
18
body structure
sedan
door opening method
swing door
number of doors (units)
4
Number of seats (seats)
5
Trunk volume (L)
430
Curb weight (kg)
1645
Maximum full load mass (kg)
2020
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
92
Total motor power (Ps)
125
Total torque of motor (N·m)
270
Maximum power of front electric motor (kW)
92
Maximum torque of front electric motor (N·m)
270
Number of drive motors
single motor
Motor layout
prefix
Battery type
Lithium iron phosphate battery
Battery brand
Huating
Battery cooling method
liquid cooling
Exchange battery
support
NEDC pure electric cruising range (km)
350
Battery energy (kWh)
44.5
Battery energy density (Wh/kg)
126.1
Electricity consumption per 100 kilometers (kWh/100km)
14.5
Battery pack warranty
Eight years or 150,000 kilometers
Fast charging function
support
Fast charging time (hours)
0.6
Slow charging time (hours)
7
Fast charging capacity (%)
80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
Front wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
disc type
Parking brake type
Electronic parking
Front tire specifications
205/50 R17
Rear tire specifications
205/50 R17

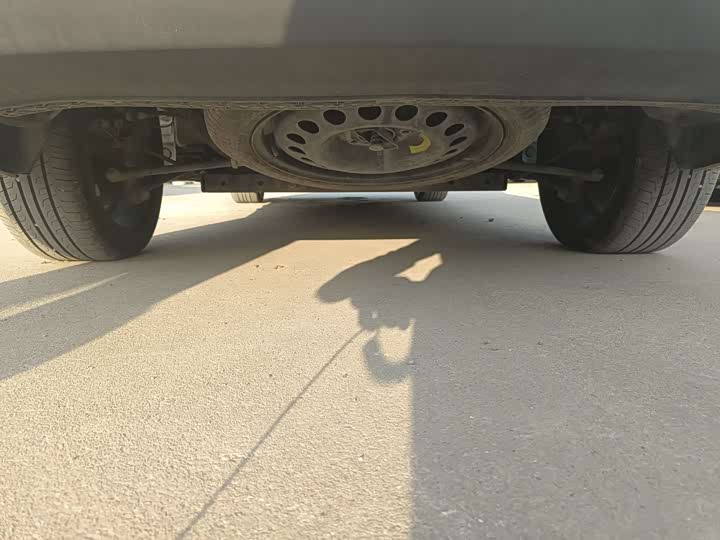

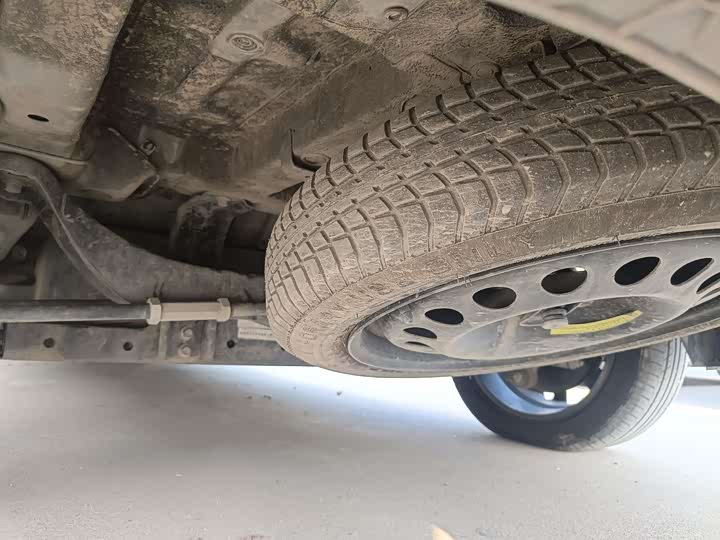

Spare tire specifications
Not full size
