Basic parameters
Model name

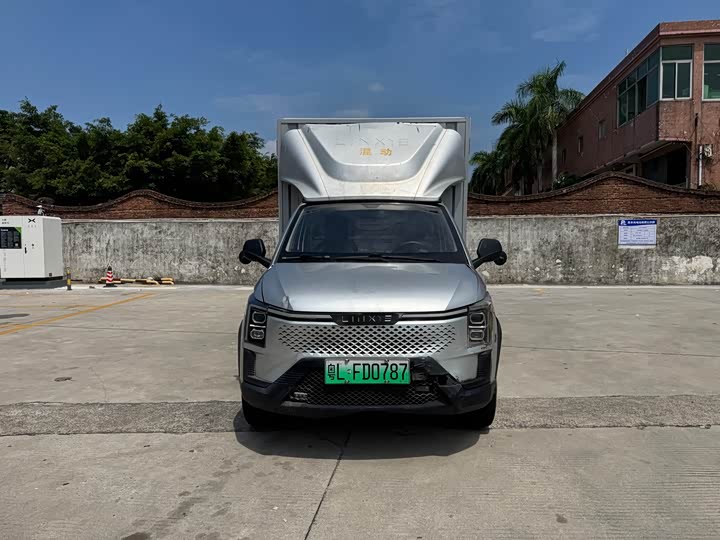

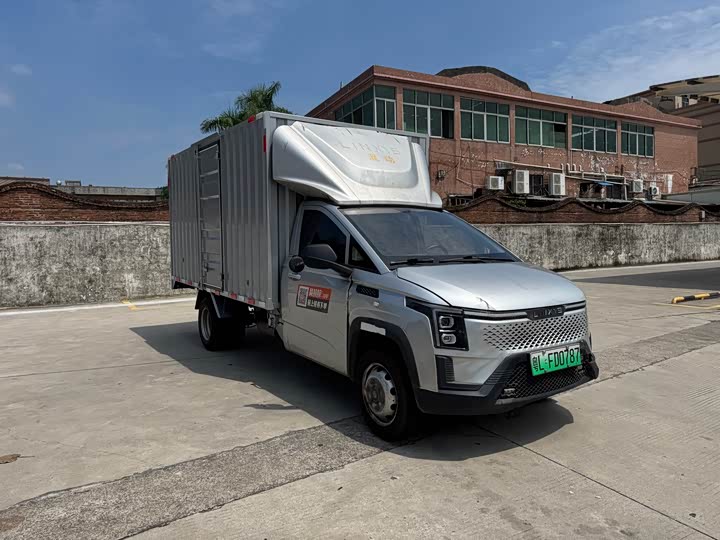

Lingshi Gold Card 2023 Leading Edition 13.26kWh
FAW Audi
Wuling New Energy
Compact SUV
microcard
Gasoline
Extended range
National VI
Time to market
Maximum power (kW)
2023.06
Pure electric cruising range of the Ministry of Industry and Information Technology (km)
-
Fast charging time (hours)
-
Slow charging time (hours)
-
Fast charging percentage
-
Maximum power(kW)
67.5
Maximum torque (N·m)
-
Engine
1.6L 92 HP L4
Motor(Ps)
163
gearbox
Electric vehicle single speed gearbox
Length*width*height (mm)
5935*1880*1845
body structure
truck
Maximum speed (km/h)
-
Comprehensive fuel consumption of the Ministry of Industry and Information Technology (L/100km)
3.6
Vehicle warranty
-
Body
length (mm)
5935
width (mm)
1880
height (mm)
1845
wheelbase (mm)
3650
front wheelbase (mm)
-
rear wheelbase (mm)
-
Minimum ground clearance (mm)
-
Curb weight (kg)
1850
body structure
truck
number of doors (units)
2

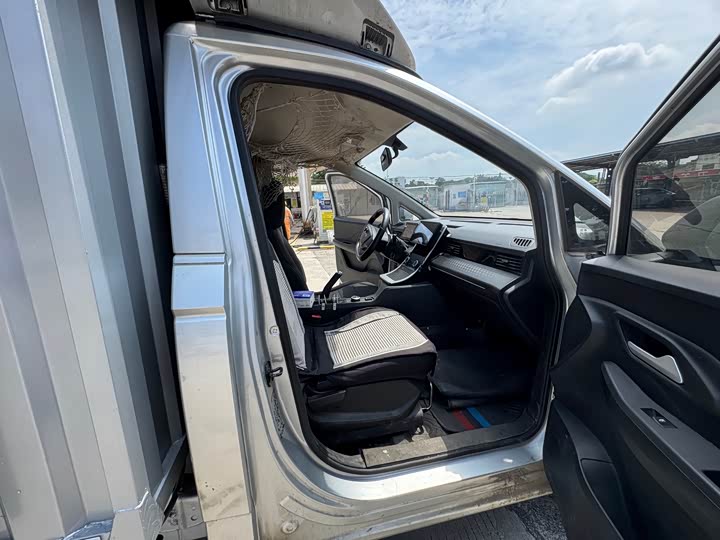

Number of seats (seats)
2
Rear door opening method
-
Fuel tank volume (L)
45

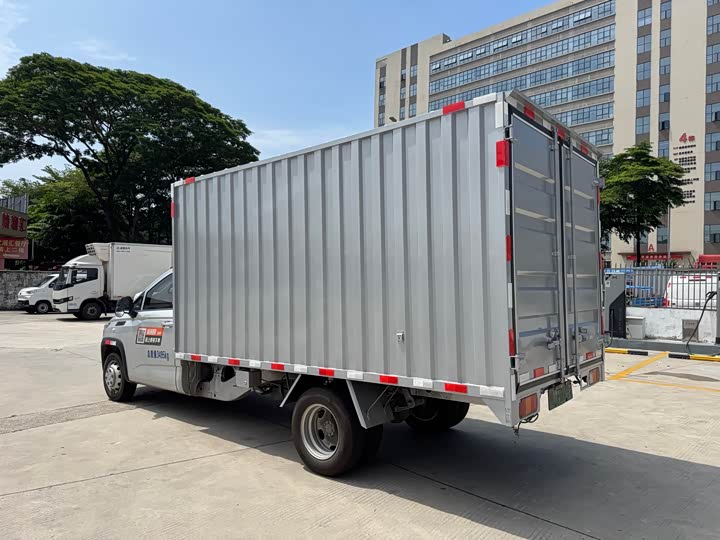

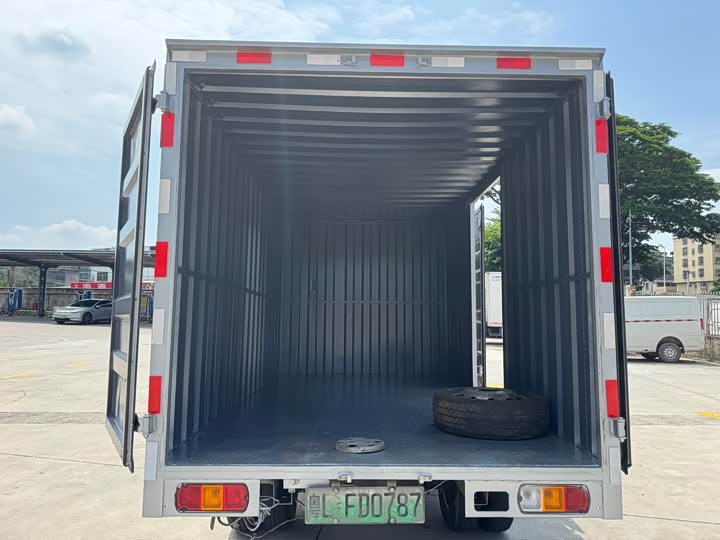

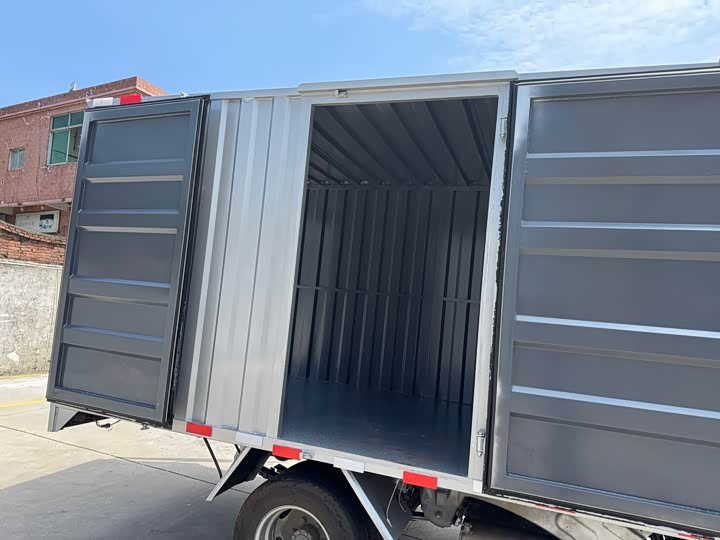

Cargo box size (mm)
3510x1780x380
Maximum load mass (kg)
-
Engine
Engine model
LJM16A
Displacement (mL)
1590
Displacement(L)
1.6
Intake form
naturally aspirated
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Compression ratio
-
Valve train
DOHC
Bore diameter(mm)
-
Stroke(mm)
-
Maximum horsepower (Ps)
92
Maximum power(kW)
67.5
Maximum power speed (rpm)
-
Maximum torque (N·m)
-
Maximum torque speed (rpm)
-
fuel form
Extended range
fuel grade
No. 92
Fuel supply method
direct injection
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
120
Total torque of motor (N·m)
320
Maximum power of front electric motor (kW)
-
Maximum torque of front electric motor (N·m)
-
Maximum power of rear electric motor (kW)
-
Maximum torque of rear electric motor (N·m)
-
Number of drive motors
single motor
Motor layout
rear
Battery type
Lithium iron phosphate battery
Ministry of Industry and Information Technology cruising range (km)
-
Battery capacity (kWh)
13.26
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
-
Battery charging time
-
Fast charging capacity (%)
-

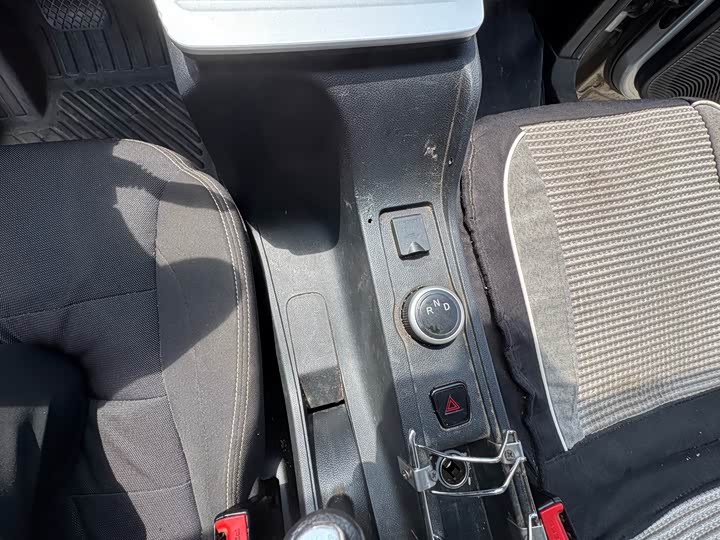

gearbox
abbreviation
Electric vehicle single speed gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
chassis steering
Drive mode
Front-wheel drive
Front suspension type
Double wishbone independent suspension
rear suspension type
leaf spring non-independent suspension
Assist type
electric assist
Body structure
Non-load-bearing
wheel brake
Front brake type
disc type
rear brake type
Drum type

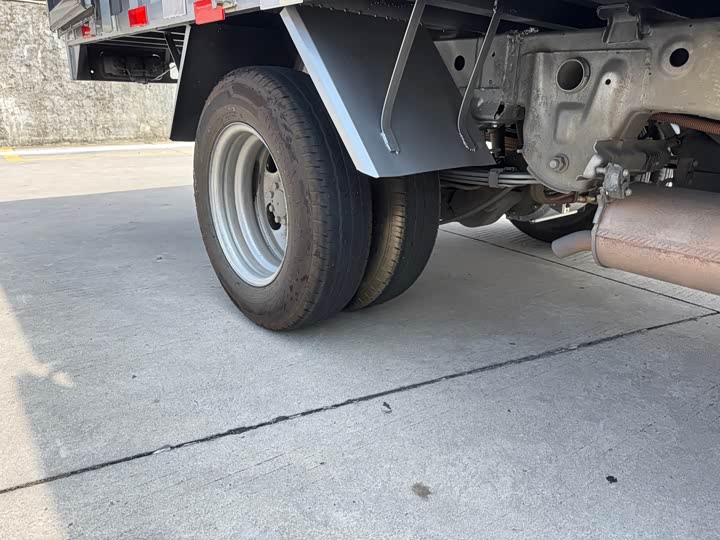

Front tire specifications
185/65 R15LT
Rear tire specifications
185/65 R15LT
