Basic parameters
Model name
Haval H5 2024 2.0T automatic four-wheel drive pioneer gasoline
FAW Audi
Great Wall Motors
Compact SUV
Large SUV
Gasoline
Environmental standards
National VI
Time to market
Maximum power (kW)
2024.03
Maximum power(kW)
165
Maximum torque (N·m)
385
Engine
2.0T 224 horsepower L4
gearbox
8-speed manual transmission
Length*width*height (mm)
5190*1905*1835
body structure
5-door, 5-seater SUV
Maximum speed (km/h)
170
Official 0-100km/h acceleration (s)
-
WLTC comprehensive fuel consumption (L/100km)
10.3
Vehicle warranty
Three years or 100,000 kilometers
First owner warranty policy
-
Body
length (mm)
5190
width (mm)
1905
height (mm)
1835
wheelbase (mm)
3140
front wheelbase (mm)
1574
rear wheelbase (mm)
1574
Minimum ground clearance without load (mm)
200
approach angle (°)
25
departure angle (°)
22
Maximum wading depth (mm)
600
body structure
SUV
door opening method
swing door
number of doors (units)
5
Number of seats (seats)
5
Fuel tank volume (L)
80
Trunk volume (L)
-
Curb weight (kg)
2120
Maximum full load mass (kg)
2730
Engine

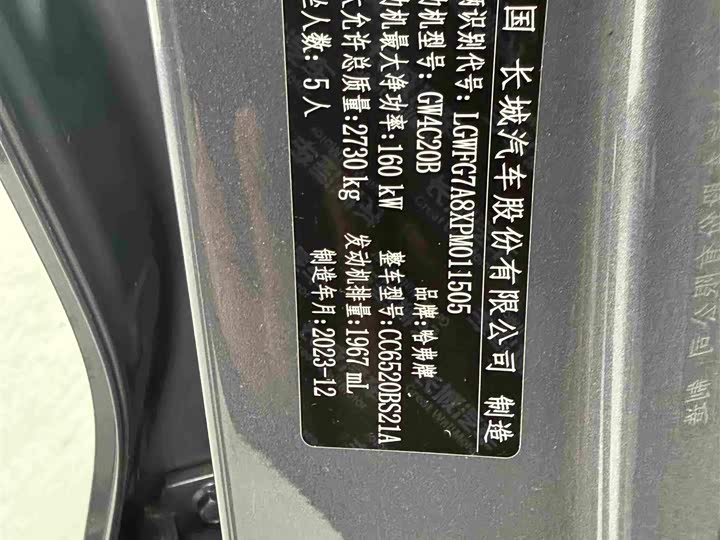

Engine model
GW4C20B
Displacement (mL)
1967
Displacement(L)
2.0
Intake form
turbocharging
Engine layout
vertically placed
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Valve train
DOHC
Maximum horsepower (Ps)
224
Maximum power(kW)
165
Maximum power speed (rpm)
5500
Maximum torque (N·m)
385
Maximum torque speed (rpm)
1800-3600
Maximum net power (kW)
160
fuel form
Environmental standards
fuel grade
No. 92
Fuel supply method
direct injection
Cylinder head material
Aluminum alloy
Cylinder material
cast iron
National VI
Time to market
gearbox
Number of gears
8
Gearbox type
Automatic manual transmission (AT)
abbreviation
8-speed manual transmission
chassis steering
Drive mode
Front four-wheel drive
four-wheel drive
four-link non-independent suspension
Center differential structure
-
Front suspension type
Double wishbone independent suspension
rear suspension type
Five-link integral bridge-type non-independent suspension
Assist type
Hydraulic assist
Body structure
Non-load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
ventilated disc
Parking brake type
Electronic parking

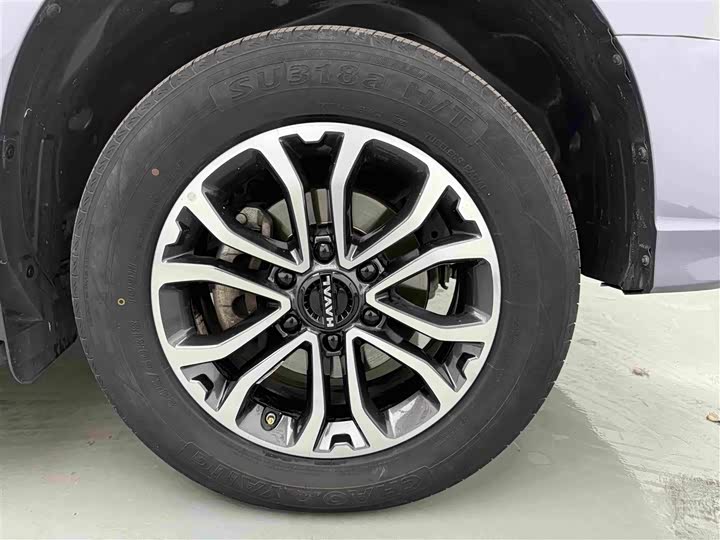

Front tire specifications
245/65 R17
Rear tire specifications
245/65 R17
Spare tire specifications
full size
