Basic parameters
Model name
Leapmoon C10 2024 530 lidar version
FAW Audi
Leap car
Compact SUV
Medium SUV
Gasoline
pure electric
Maximum power (kW)
2024.03
CLTC pure electric cruising range (km)
530
Fast charging time (hours)
0.5
Slow charging time (hours)
6.1
Fast charging percentage
30-80
Maximum power(kW)
-
Maximum torque (N·m)
-
Motor(Ps)
231
Length*width*height (mm)
4739*1900*1680
body structure
5-door, 5-seater SUV
Maximum speed (km/h)
170
Official 0-100km/h acceleration (s)
7.29
Vehicle warranty
Four years or 120,000 kilometers
First owner warranty policy
-
Body
length (mm)
4739
width (mm)
1900
height (mm)
1680
wheelbase (mm)
2825
front wheelbase (mm)
1625
rear wheelbase (mm)
1620
Minimum ground clearance without load (mm)
180
approach angle (°)
17
departure angle (°)
23
body structure
SUV
door opening method
swing door
number of doors (units)
5

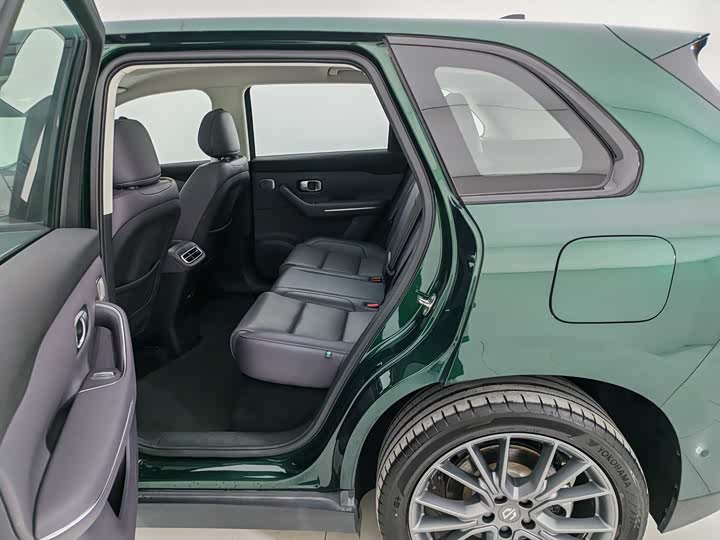

Number of seats (seats)
5
Trunk volume (L)
370-835
Curb weight (kg)
1965
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
170
Total motor power (Ps)
-
Total torque of motor (N·m)
320
Maximum power of rear electric motor (kW)
170
Maximum torque of rear electric motor (N·m)
320
Number of drive motors
single motor
Motor layout
rear
Battery type
Lithium iron phosphate battery
Battery brand
China New Airlines
Battery cooling method
liquid cooling
CLTC pure electric cruising range (km)
530
Battery energy (kWh)
69.9
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
Eight years or 150,000 kilometers
Fast charging function
support
Fast charging power (kW)
80
Fast charging time (hours)
0.5
Slow charging time (hours)
6.1
Fast charging capacity (%)
30-80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
rear wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Five-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
ventilated disc
Parking brake type
Electronic parking

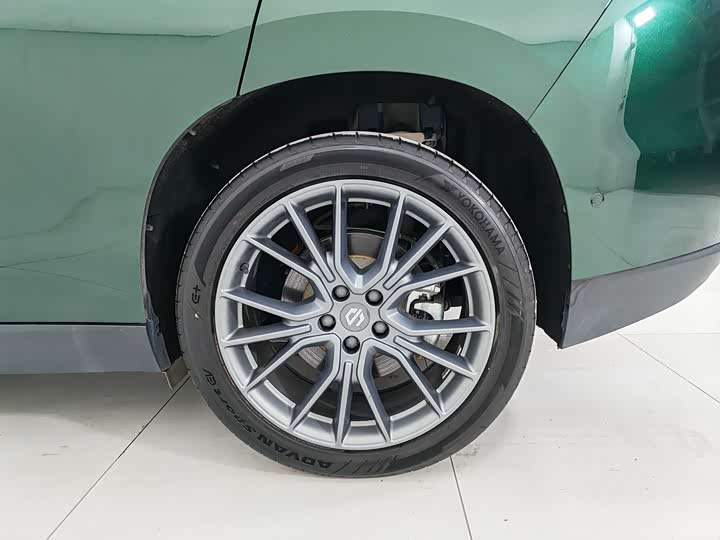

Front tire specifications
235/55 R18
Rear tire specifications
235/55 R18
Spare tire specifications
None
