Basic parameters
Model name

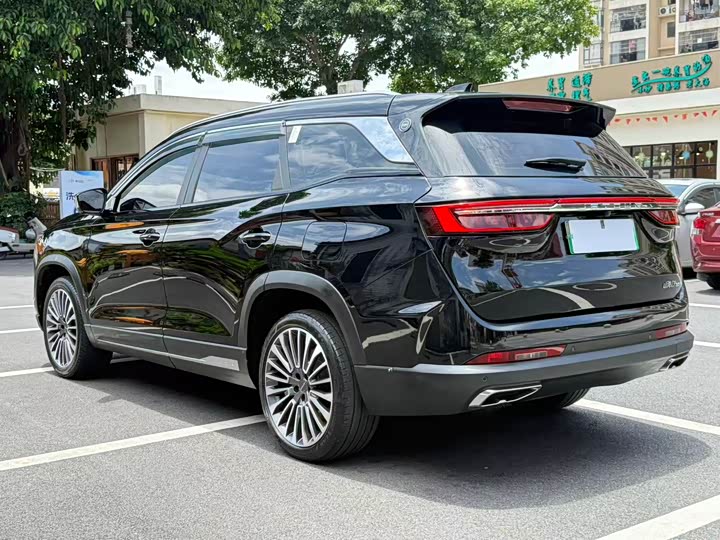

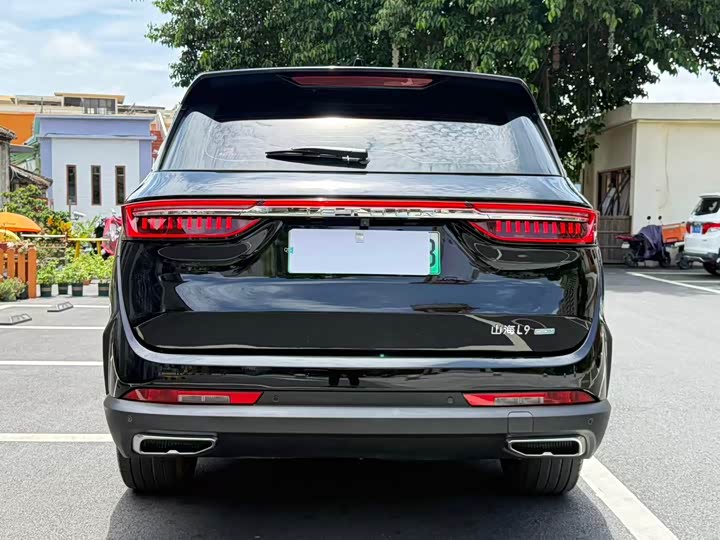

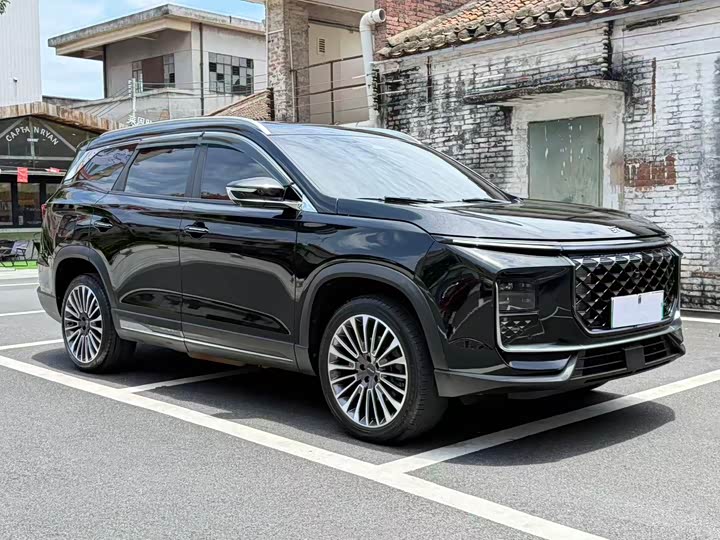

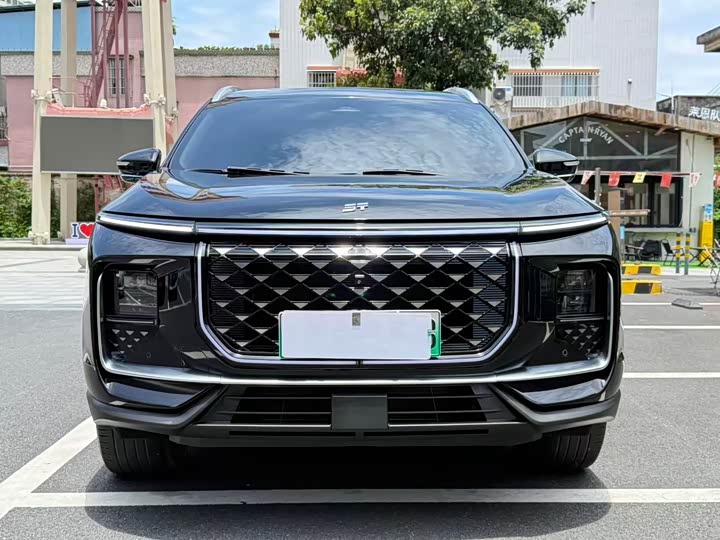

Jietu Shanhai L9 2024 model 1.5TD 2DHT Pro 7 seats
FAW Audi
Chery Automobile
Compact SUV
Medium SUV
Gasoline
plug-in hybrid
National VI
Time to market
Maximum power (kW)
2023.11
WLTC pure electric cruising range (km)
84
CLTC pure electric cruising range (km)
108
Fast charging time (hours)
0.42
Slow charging time (hours)
3.5
Fast charging percentage
20-80
Maximum power(kW)
314
Maximum torque (N·m)
-
Engine
1.5T 156 HP L4
Motor(Ps)
271
gearbox
2nd gear DHT
Length*width*height (mm)
4862*1925*1784
body structure
5-door, 7-seater SUV
Maximum speed (km/h)
180
Official 0-100km/h acceleration (s)
7.8
Official 0-50km/h acceleration (s)
3.4
WLTC comprehensive fuel consumption (L/100km)
1.49
Minimum state of charge fuel consumption (L/100km)
5.3
Vehicle warranty
Unlimited years/unlimited mileage (limited to non-operating vehicle owners, liability exemption terms shall be subject to the official)
First owner warranty policy
-
Body
length (mm)
4862
width (mm)
1925
height (mm)
1784
wheelbase (mm)
2850
front wheelbase (mm)
1600
rear wheelbase (mm)
1605
approach angle (°)
20
departure angle (°)
17
body structure
SUV
door opening method
swing door
number of doors (units)
5
Number of seats (seats)
7
Fuel tank volume (L)
60
Trunk volume (L)
1634
Curb weight (kg)
1922
Maximum full load mass (kg)
2447
Engine
Engine model
SQRH4J15
Displacement (mL)
1499
Displacement(L)
1.5
Intake form
turbocharging
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Valve train
DOHC
Maximum horsepower (Ps)
156
Maximum power(kW)
115
Maximum power speed (rpm)
-
Maximum torque (N·m)
220
Maximum torque speed (rpm)
-
Maximum net power (kW)
105
Engine specific technology
Miller cycle
fuel form
plug-in hybrid
fuel grade
No. 92
Fuel supply method
direct injection
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
199
Total motor power (Ps)
-
Total torque of motor (N·m)
395
Maximum power of front electric motor (kW)
199
Maximum torque of front electric motor (N·m)
395
System comprehensive power (kW)
314
System comprehensive power (Ps)
427
Number of drive motors
Dual motor
Motor layout
prefix
Battery type
Ternary lithium battery
Battery brand
Guoxuan Hi-Tech
WLTC pure electric cruising range (km)
84
CLTC pure electric cruising range (km)
108
Battery energy (kWh)
19.43
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
There is no limit on the number of years/mileage for the first owner of the car (the liability exemption clause shall be subject to the official)
Fast charging function
support
Fast charging power (kW)
38.86
Fast charging time (hours)
0.42
Slow charging time (hours)
3.5
Fast charging capacity (%)
20-80
gearbox
Number of gears
2
Gearbox type
Dedicated Hybrid Transmission (DHT)
abbreviation
2nd gear DHT
chassis steering
Drive mode
Front wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
disc type
Parking brake type
Electronic parking
Front tire specifications
255/45 R20
Rear tire specifications
255/45 R20
Spare tire specifications
Tire repair tools
