Basic parameters
Model name

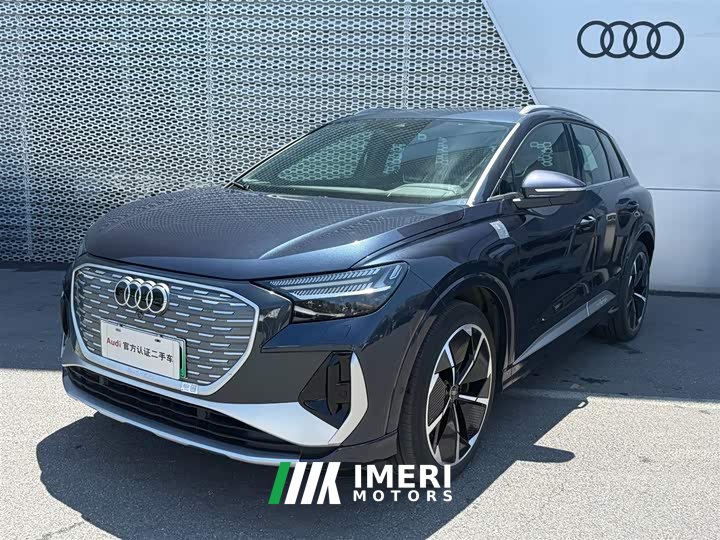

Audi Q4 e-tron 2023 50 e-tron quattro creation edition
FAW Audi
Level
Compact SUV
Energy type
Gasoline
pure electric
Maximum power (kW)
2023.03
CLTC pure electric cruising range (km)
560
Fast charging time (hours)
0.68
Slow charging time (hours)
12
Fast charging percentage
5-80
Maximum power(kW)
230
Maximum torque (N·m)
472
Motor(Ps)
313
Length*width*height (mm)
4588*1865*1626
body structure
5-door, 5-seater SUV
Maximum speed (km/h)
160
Official 0-100km/h acceleration (s)
6.8
Official 0-50km/h acceleration (s)
3
Electric energy equivalent fuel consumption (L/100km)
1.75
Vehicle warranty
Three years or 100,000 kilometers
First owner warranty policy
-
Body
length (mm)
4588
width (mm)
1865
height (mm)
1626
wheelbase (mm)
2765
front wheelbase (mm)
1587
rear wheelbase (mm)
1566
minimum ground clearance for full load Gap (mm)
154
approach angle (°)
16
departure angle (°)
21
minimum turning radius (m)
5.8
body structure
SUV
door opening method
swing door
number of doors (units)
5
Number of seats (seats)
5
Trunk volume (L)
520
Drag coefficient (Cd)
0.28
Curb weight (kg)
2255
Maximum full load mass (kg)
2720
electric motor
Motor type
Front AC/asynchronous rear permanent magnet/synchronous
Total motor power (kW)
230
Total motor power (Ps)
-
Total torque of motor (N·m)
472
Maximum power of front electric motor (kW)
80
Maximum torque of front electric motor (N·m)
162
Maximum power of rear electric motor (kW)
150
Maximum torque of rear electric motor (N·m)
310
Number of drive motors
Dual motor
Motor layout
Front rear
Battery type
Ternary lithium battery
CLTC pure electric cruising range (km)
560
Battery energy (kWh)
84.8
Battery energy density (Wh/kg)
165
Electricity consumption per 100 kilometers (kWh/100km)
15.5
Battery pack warranty
Eight years or 160,000 kilometers
Fast charging function
-
Fast charging time (hours)
0.68
Slow charging time (hours)
12
Fast charging capacity (%)
5-80
gearbox
Number of gears
1
Gearbox type
fixed ratio gearbox
abbreviation
Electric vehicle single speed gearbox
chassis steering
Drive mode
Dual motor four-wheel drive
four-wheel drive
Electric four-wheel drive
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
Drum type
Parking brake type
Electronic parking
Front tire specifications
235/45 R21
Rear tire specifications
255/40 R21
Spare tire specifications
None
