Basic parameters
Model name

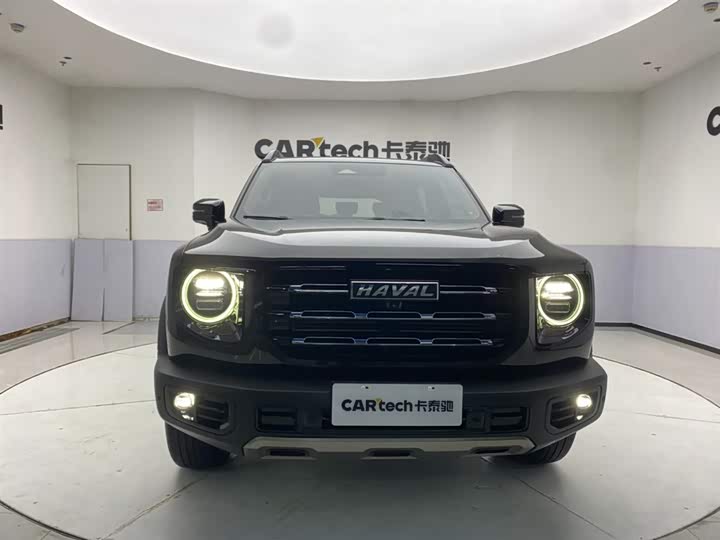

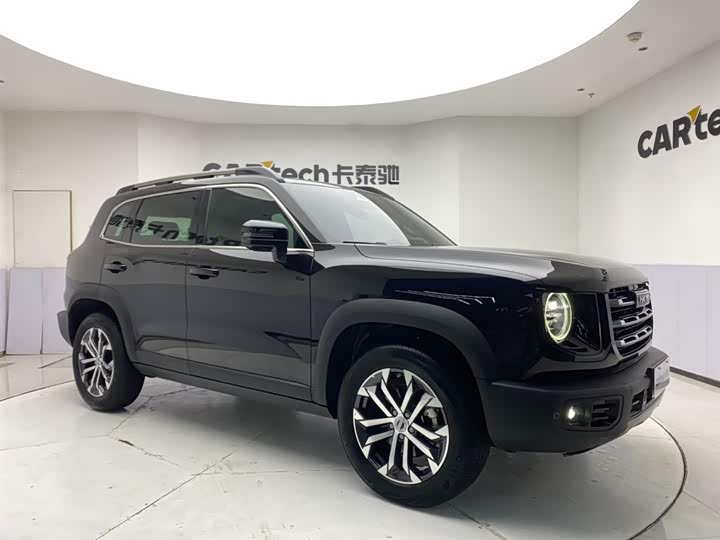

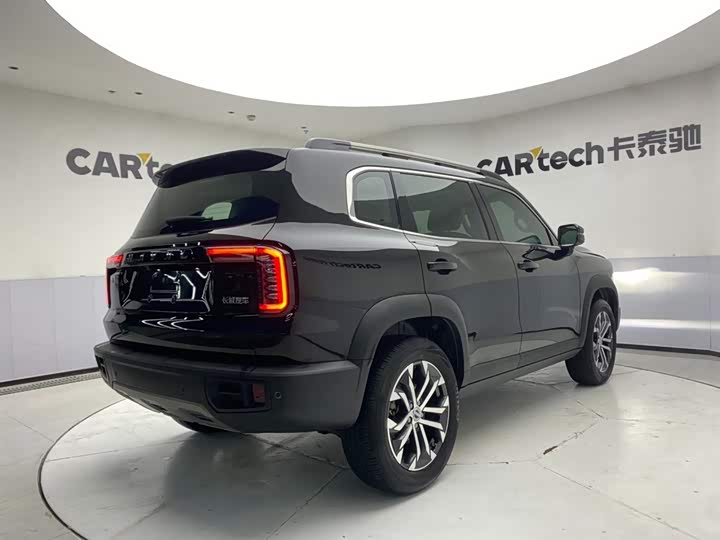

Haval Big Dog 2021 1.5T DCT two-wheel drive Border Collie-Wangcai Edition
FAW Audi
Great Wall Motors
Compact SUV
Energy type
Gasoline
Environmental standards
National VI
Time to market
Maximum power (kW)
2020.12
Maximum power(kW)
124
Maximum torque (N·m)
285
Engine
1.5T169 horsepowerL4
gearbox
7-speed wet dual clutch
Length*width*height (mm)
4620*1890*1780
body structure
5-door, 5-seater SUV
Maximum speed (km/h)
175
Official 0-100km/h acceleration (s)
-
NEDC comprehensive fuel consumption (L/100km)
6.9
WLTC comprehensive fuel consumption (L/100km)
7.27
Vehicle warranty
Three years or 100,000 kilometers
First owner warranty policy
-

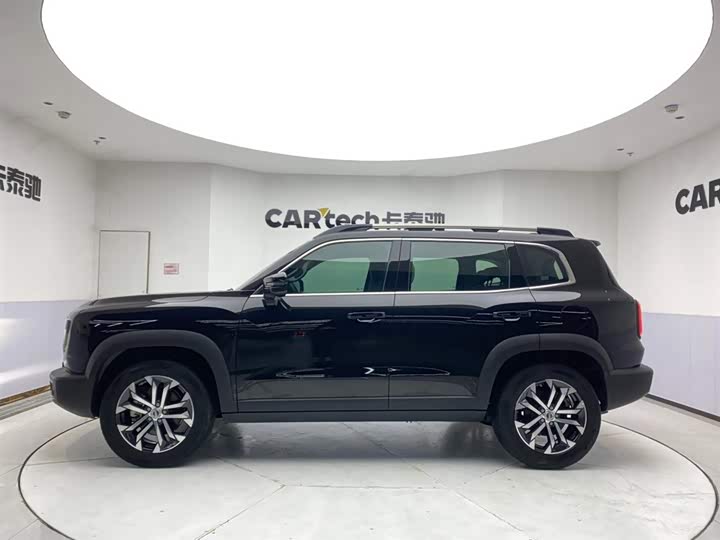

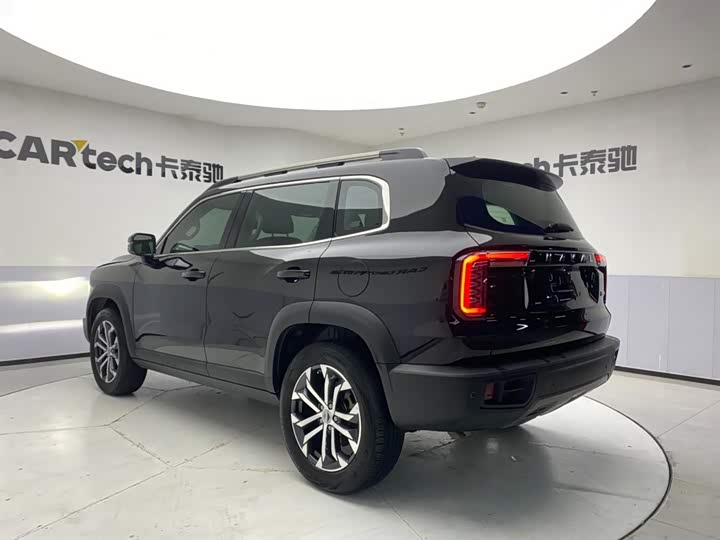

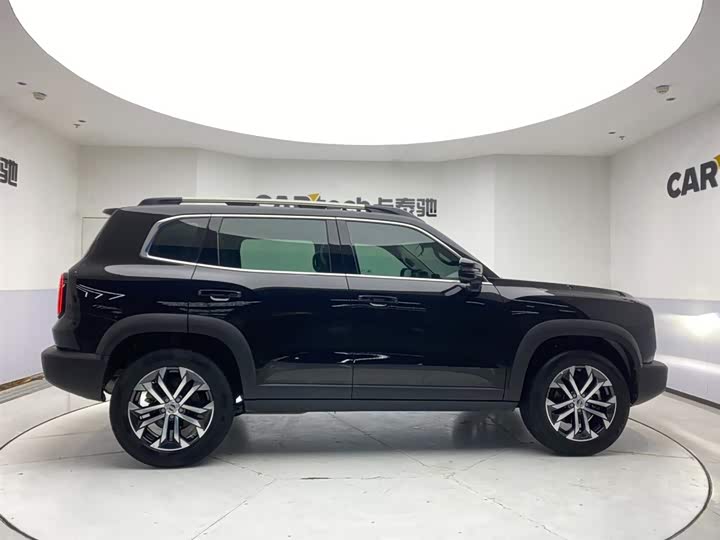

Body
length (mm)
4620
width (mm)
1890
height (mm)
1780
wheelbase (mm)
2738
front wheelbase (mm)
1631
rear wheelbase (mm)
1640
Minimum ground clearance without load (mm)
200
approach angle (°)
24
departure angle (°)
30
body structure
SUV

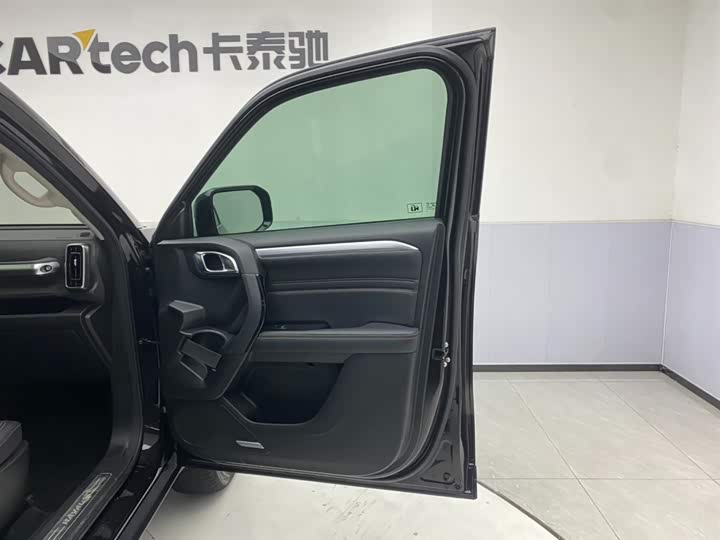

door opening method
swing door
number of doors (units)
5

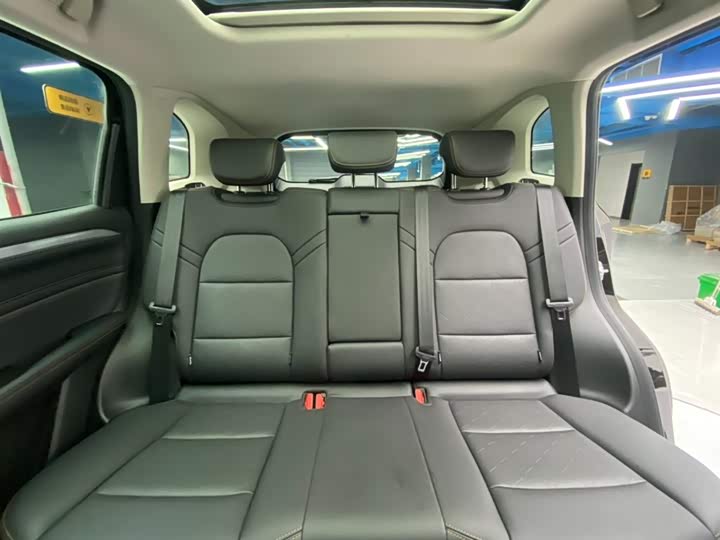

Number of seats (seats)
5
Fuel tank volume (L)
61
Trunk volume (L)
-
Curb weight (kg)
1575
Maximum full load mass (kg)
2000

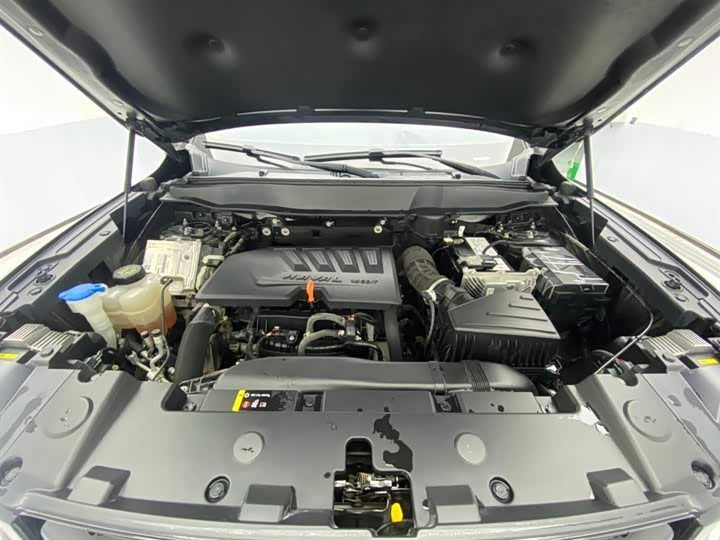

Engine
Engine model
GW4B15A
Displacement (mL)
1499
Displacement(L)
1.5
Intake form
turbocharging
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Valve train
DOHC
Maximum horsepower (Ps)
169
Maximum power(kW)
124
Maximum power speed (rpm)
5000-5600
Maximum torque (N·m)
285
Maximum torque speed (rpm)
1400-3600
Maximum net power (kW)
120
Engine specific technology
CVVL
fuel form
Environmental standards
fuel grade
No. 92
Fuel supply method
direct injection
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market

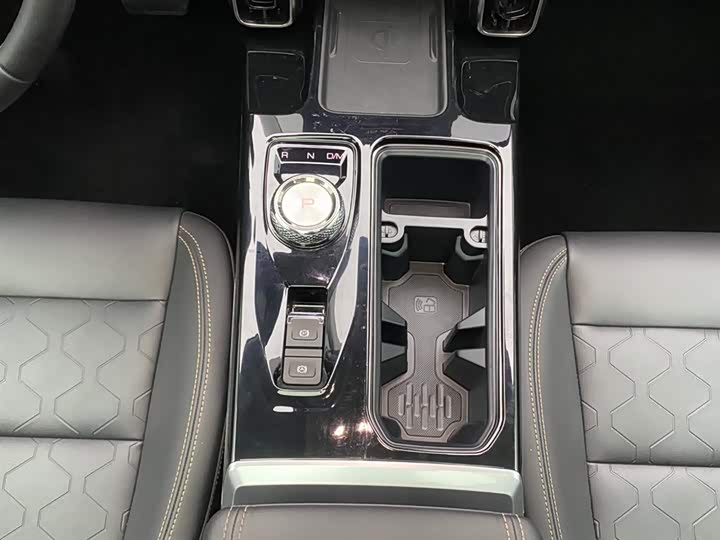

gearbox
Number of gears
7
Gearbox type
Wet dual-clutch transmission (DCT)
abbreviation
7-speed wet dual clutch
chassis steering
Drive mode
Front wheel drive
four-wheel drive
-
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
Multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
disc type
Parking brake type
Electronic parking
Front tire specifications
235/60 R19

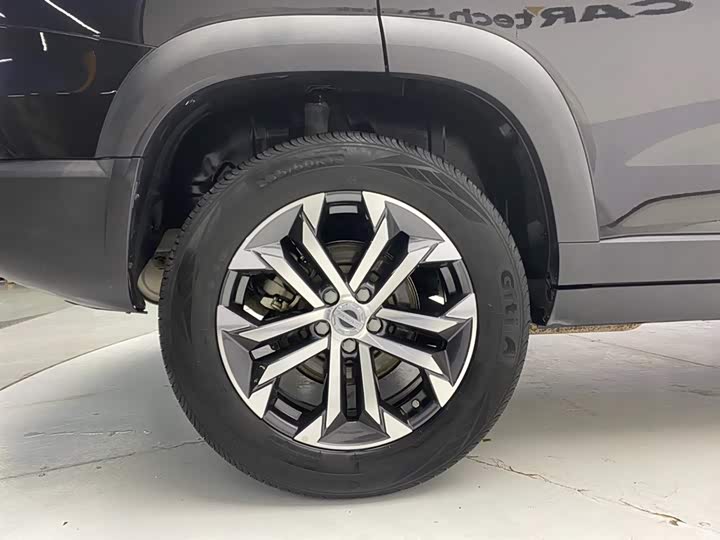

Rear tire specifications
235/60 R19
Spare tire specifications
Not full size
