Basic parameters
Model name

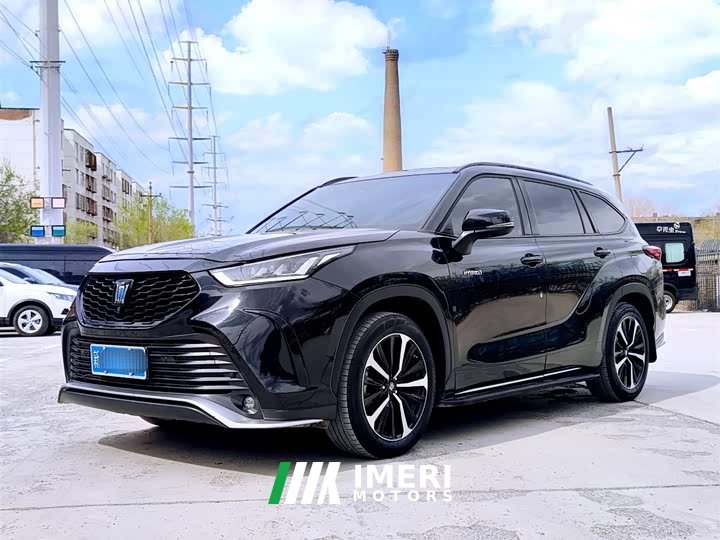

Toyota Crown Kluger 2023 2.5L HEV AWD Premium Edition
FAW Audi
FAW Toyota
Compact SUV
Medium SUV
Gasoline
Gas-electric hybrid
National VI
Time to market
Maximum power (kW)
2023.03
Maximum power(kW)
181
Maximum torque (N·m)
-
Engine
2.5L 189 HP L4
Motor(Ps)
237
gearbox
E-CVT continuously variable transmission
Length*width*height (mm)
5015*1930*1750
body structure
5-door, 7-seater SUV
Maximum speed (km/h)
180
Official 0-100km/h acceleration (s)
-
WLTC comprehensive fuel consumption (L/100km)
5.97
Vehicle warranty
Three years or 100,000 kilometers
First owner warranty policy
-
Body
length (mm)
5015
width (mm)
1930
height (mm)
1750
wheelbase (mm)
2850
front wheelbase (mm)
1655
rear wheelbase (mm)
1660
approach angle (°)
17
departure angle (°)
20
minimum turning radius (m)
5.7
body structure
SUV
door opening method
swing door
number of doors (units)
5
Number of seats (seats)
7
Fuel tank volume (L)
65
Trunk volume (L)
-
Curb weight (kg)
2090
Maximum full load mass (kg)
2700
Engine
Engine model
A25F
Displacement (mL)
2487
Displacement(L)
2.5
Intake form
naturally aspirated
Engine layout
horizontal
Cylinder arrangement
L
Number of cylinders (number)
4
Number of valves per cylinder (number)
4
Compression ratio
14
Valve train
DOHC
Bore diameter(mm)
87.5
Stroke(mm)
103.4
Maximum horsepower (Ps)
189
Maximum power(kW)
139
Maximum power speed (rpm)
6000
Maximum torque (N·m)
236
Maximum torque speed (rpm)
4200-4700
Maximum net power (kW)
139
Engine specific technology
VVT-iE
fuel form
Gas-electric hybrid
fuel grade
No. 92
Fuel supply method
mixed jet
Cylinder head material
Aluminum alloy
Cylinder material
Aluminum alloy
National VI
Time to market
electric motor
Motor type
Permanent magnet/synchronization
Total motor power (kW)
174
Total motor power (Ps)
-
Total torque of motor (N·m)
391
Maximum power of front electric motor (kW)
134
Maximum torque of front electric motor (N·m)
270
Maximum power of rear electric motor (kW)
40
Maximum torque of rear electric motor (N·m)
121
System comprehensive power (kW)
181
System comprehensive power (Ps)
246
Number of drive motors
Dual motor
Motor layout
Front rear
Battery type
Ni-MH battery
Battery brand
Xinzhongyuan Toyota
Battery energy (kWh)
-
Electricity consumption per 100 kilometers (kWh/100km)
-
Battery pack warranty
Eight years or 200,000 kilometers
Fast charging function
-
Fast charging time (hours)
-
Slow charging time (hours)
-
Fast charging capacity (%)
-
gearbox
Number of gears
Continuously variable speed
Gearbox type
Electronic continuously variable transmission (E-CVT)
abbreviation
E-CVT continuously variable transmission
chassis steering
Drive mode
Front four-wheel drive
four-wheel drive
Electric four-wheel drive
Center differential structure
-
Front suspension type
MacPherson independent suspension
rear suspension type
E-type multi-link independent suspension
Assist type
electric assist
Body structure
Load-bearing
wheel brake
Front brake type
ventilated disc
rear brake type
ventilated disc
Parking brake type
Electronic parking
Front tire specifications
235/55 R20
Rear tire specifications
235/55 R20
Spare tire specifications
Not full size
